STMicroelectronics NUCLEO-F401RE Overview

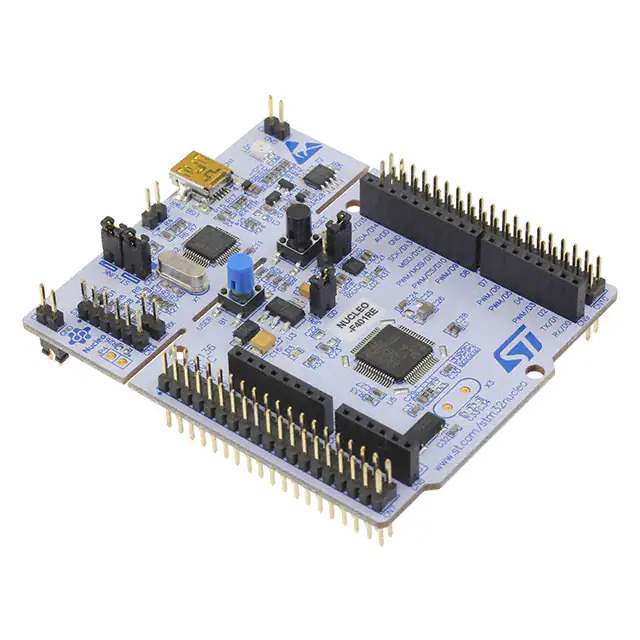

The NUCLEO-F401RE is a versatile and affordable development board from STMicroelectronics, designed for the STM32 F4 series microcontrollers. It is a powerful tool for both hobbyists and professional developers looking to prototype and test their applications with the STM32F401RET6 MCU at its core.

This microcontroller features a 32-bit ARM Cortex-M4 core with a floating-point unit, running at up to 84 MHz. It boasts a substantial 512KB of Flash memory and 96KB of SRAM, providing ample space for complex applications. The board's comprehensive set of peripherals includes USB OTG Full-Speed, digital I/Os, analog inputs, SPI, I2C, and USART interfaces, making it suitable for a wide range of applications, from rapid prototyping to full-scale development.

The NUCLEO-F401RE ensures ease of use with its Arduino Uno V3 connectivity support and ST Morpho headers, which allow for the easy expansion of the functionality with a wide choice of specialized shields. The board is also equipped with an integrated ST-LINK/V2-1 debugger/programmer, which eliminates the need for additional hardware to program and debug the MCU, simplifying the development process.

The development board is supported by a range of development environments, including IAR, Keil, and GCC-based IDEs, such as SW4STM32 and Atollic TrueSTUDIO. This allows developers to choose the environment they are most comfortable with, or best suited to their project requirements.

Additionally, the NUCLEO-F401RE is part of the STM32 Nucleo ecosystem, which includes a comprehensive software HAL library, as well as a set of software examples, and direct access to the ARM® mbed™ online resources, further simplifying the development process.

In summary, the NUCLEO-F401RE is a feature-rich yet cost-effective solution for rapid development with the STM32 microcontroller family, providing the necessary tools and flexibility for a wide range of projects.
