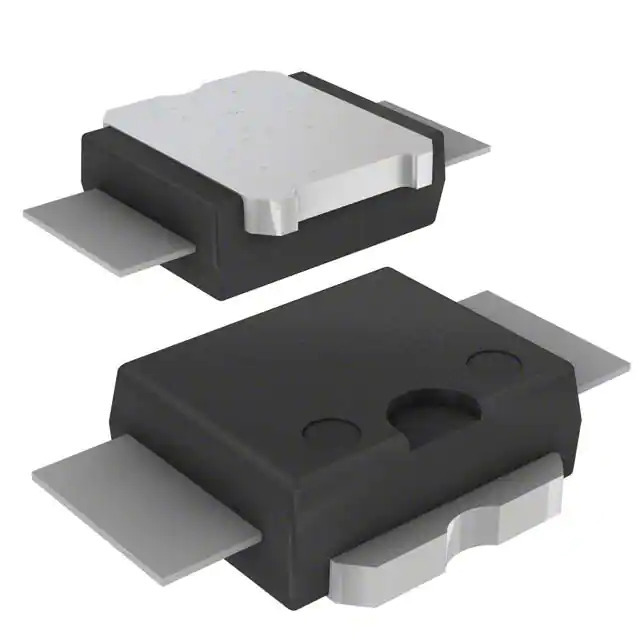

The PD55025S-E is a state-of-the-art RF power transistor from the renowned manufacturer STMicroelectronics. This product is designed to deliver high-performance and efficiency in radio frequency (RF) power amplification applications. It is particularly suitable for mobile and satellite communication systems, where power, efficiency, and reliability are critical factors.

Key Features

• High Power Output: The PD55025S-E is capable of delivering a significant amount of RF power, making it ideal for high-power applications.
• Wide Frequency Range: This transistor operates over a broad frequency spectrum, ensuring versatility across various communication bands.
• High Efficiency: With an advanced design focused on power efficiency, the PD55025S-E ensures reduced power losses and improved overall performance.
• Thermal Performance: The product features an excellent thermal profile, which allows for stable operation even under high temperature conditions.
• Durability: Manufactured with robust materials, the PD55025S-E is built to withstand the rigors of demanding RF applications.

Applications

The PD55025S-E is well-suited for a variety of applications, including but not limited to:

• Base station transmitters for mobile radio
• RF power amplifiers for satellite communication systems
• Broadband wireless systems
• Industrial, scientific, and medical (ISM) applications

Technical Specifications

Parameter Value Technology LDMOS Operating Frequency Up to 3.6 GHz Output Power (P<sub>OUT) 25 W (continuous wave) Drain-source Voltage (V<sub>DSS) 65 V Gain 14 dB Efficiency 45% Package PowerFLAT (5x6) HV

The PD55025S-E transistor is a testament to STMicroelectronics' commitment to providing high-quality components for advanced electronic systems. With its robust design, high efficiency, and flexible application range, it stands as a top choice for designers and engineers looking to enhance their RF power capabilities.
