STMicroelectronics Product SD57120 Overview

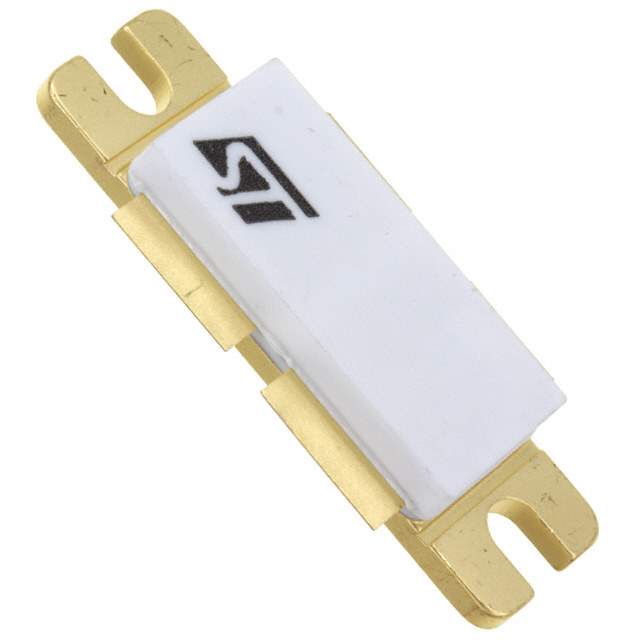

The SD57120 is a high-performance RF power transistor from STMicroelectronics, designed to meet the demanding requirements of professional RF energy applications. This device is part of ST's STPOWER line, which is renowned for its reliability and efficiency in high-power, high-frequency applications. The SD57120 is specifically engineered to deliver outstanding output power, gain, and efficiency when operated in the 1.0 to 1.1 GHz frequency range.

Key Features

• Frequency Range: Optimized for 1.0 to 1.1 GHz, making it ideal for a variety of RF applications, including broadcast transmitters, RF plasma generators, and industrial heating.
• High Output Power: Capable of delivering a high level of output power, which is critical for applications requiring strong signal transmission or high-intensity RF energy.
• High Gain: Provides excellent gain performance, ensuring efficient signal amplification and minimizing the need for additional stages in the signal chain.
• Efficiency: Boasts impressive efficiency, reducing power consumption and heat generation, which in turn enhances the overall system reliability and longevity.
• Thermal Performance: Engineered with superior thermal characteristics that enable stable operation even under high-temperature conditions.
• Ruggedness: Built to withstand harsh operating conditions, ensuring consistent performance and durability.

Applications

The SD57120 is versatile and can be used in a wide array of applications. Its primary use cases include professional broadcast transmitter systems, where reliability and signal clarity are paramount. Additionally, it is well-suited for industrial applications such as RF heating and plasma generation, where its power and efficiency can be leveraged to improve process control and energy utilization. The robustness of the SD57120 also makes it a solid choice for medical applications, including magnetic resonance imaging (MRI) and RF ablation, where precision and stability are critical.

Conclusion

In summary, the SD57120 from STMicroelectronics is a state-of-the-art RF power transistor that offers a blend of high power, efficiency, and gain within the 1.0 to 1.1 GHz frequency range. Its rugged design and superior thermal performance make it an excellent choice for a variety of professional RF applications, ensuring reliable and efficient operation.
