Products specifications Report Issue?

Manufacturer STMicroelectronics
Standard Package 1
Category Integrated Circuits(ICs)
Family PMIC - Voltage Regulators - DC DC Switching Regulators
Packaging Reel
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5.22V
Current - Output 2A
Frequency - Switching 1.5MHz
Synchronous Rectifier Yes
Operating Temperature Range -30°C ~ 85°C (TJ)
Mounting Style SMD/SMT

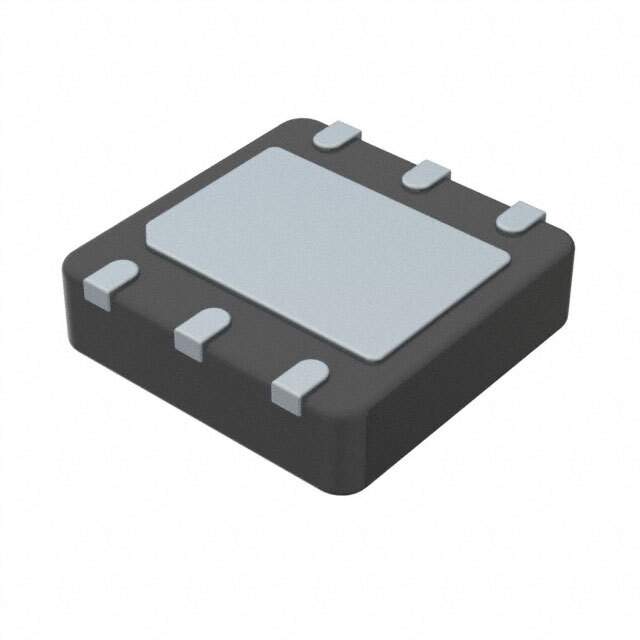

Package 6-VDFN Exposed Pad
Manufacturer Device Package 6-DFN (3x3)
Catalog Buck (Step-Down) IC
Win Source Part Number 042885-ST1S09IPUR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ST1S09IPUR CAD Model

Description

The ST1S09IPUR is a highly efficient, synchronous step-down DC-DC converter designed by STMicroelectronics, a leader in semiconductor solutions. This voltage regulator is tailored for portable and space-constrained applications that demand low power consumption and high efficiency.

Key Features

  • Output Voltage Range: The ST1S09IPUR offers an adjustable output voltage range from 0.8V to VIN, making it versatile for various low-voltage applications.
  • High Efficiency: With a peak efficiency of up to 95%, this device ensures minimal power loss and heat generation, prolonging battery life in portable devices.
  • Maximum Output Current: It can deliver up to 1.5A of continuous output current, catering to the needs of high-performance electronics.
  • Operating Input Voltage: The input voltage range is from 2.5V to 5.5V, compatible with standard battery technologies and USB power sources.
  • Low Quiescent Current: Its low quiescent current of just 20μA (typical) in light-load conditions enhances battery life in standby modes.
  • Frequency Synchronization: The device allows for external frequency synchronization to optimize system performance and reduce electromagnetic interference (EMI).
  • Protection Features: It includes thermal shutdown, current limit, and short-circuit protection, ensuring reliable operation under various conditions.

Applications

The ST1S09IPUR is ideal for a wide range of applications, including but not limited to:

  • Mobile phones and smartphones
  • Portable media players
  • Digital cameras and camcorders
  • Handheld GPS units
  • Wireless LAN/Networking devices

Package and Availability

The regulator is available in a compact QFN-16 (3x3 mm) package, providing a space-saving solution for densely packed circuit boards. Its lead-free and RoHS-compliant design reflects STMicroelectronics' commitment to environmental sustainability.

For technical documentation, sample requests, or purchase information, visit the STMicroelectronics website or contact an authorized distributor. The ST1S09IPUR is a testament to STMicroelectronics' dedication to providing advanced power management solutions that meet the evolving needs of modern electronics.
