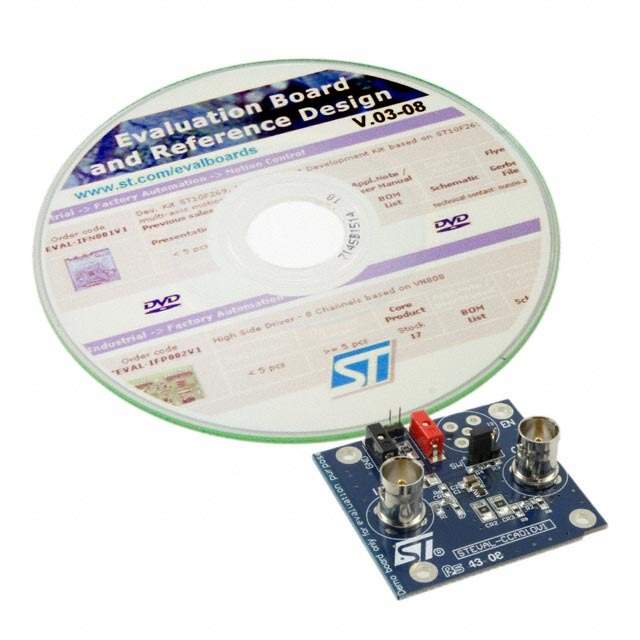

The STEVAL-CCA010V1 from STMicroelectronics is a state-of-the-art demonstration board designed specifically for audio applications. This robust and versatile board features the TDA7491P, a dual BTL class-D audio amplifier, which is ideal for home systems, active speakers, and docking stations. The TDA7491P is capable of delivering high-quality sound with a reduced number of external components, making it a perfect choice for compact audio solutions.
With its efficient class-D operation, the STEVAL-CCA010V1 ensures excellent power efficiency, which is critical for reducing heat dissipation and extending the life of battery-powered devices. The board is capable of driving up to 20 watts per channel into an 8-ohm load, providing ample power for a wide range of audio applications.
The demonstration board includes a range of features that make it user-friendly and adaptable to various audio configurations. It offers differential inputs to minimize common-mode noise, a standby and mute feature for power-saving modes, and short-circuit and thermal overload protection to safeguard the amplifier and connected components.
The STEVAL-CCA010V1 is designed with flexibility in mind, supporting both single-ended and differential input configurations, which allows it to interface with a variety of audio sources. The board also includes an I²C interface for volume control, providing a convenient way to adjust the output level.
This demonstration board is not just about performance; it's also designed for ease of use. It comes with an easy-to-follow user manual and schematic diagrams to assist developers in quickly integrating the board into their projects. Whether you're a hobbyist looking to enhance your audio system or a professional engineer developing a commercial product, the STEVAL-CCA010V1 offers a reliable and high-performing solution for your audio amplification needs.
