Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 350mA
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 6V ~ 24V
Supplied Contents Board(s)
Utilized IC / Part LED6001
Base Product Number STEVAL
Other Names 497-15085
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283831-STEVAL-ILL049V12
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL049V12 CAD Model

Description

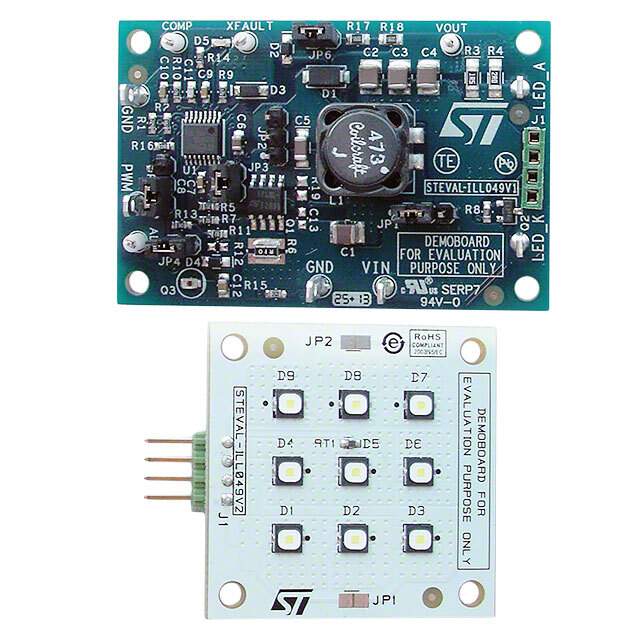

The STEVAL-ILL049V12 from STMicroelectronics is a state-of-the-art LED driver evaluation board designed to demonstrate the capabilities of the LED6001 chip for driving LED strings. This compact and efficient evaluation tool is an excellent resource for engineers and designers looking to explore the features and performance of the LED6001 in their lighting applications.

Key Features

  • Integrated LED6001 Chip: The board is built around the LED6001, a step-down monolithic switching regulator designed to source up to 3 A DC current for LED driving.
  • Wide Input Voltage Range: Accommodates a broad range of input voltages from 4.5 V to 38 V, making it versatile for various power supply conditions.
  • Adjustable Output Current: Users can set the output current through a resistor, enabling precise control over the LED brightness.
  • High-Efficiency Operation: The LED6001 ensures efficient operation with its low dropout operation and minimal external component count.
  • Dimming Capability: The board supports both analog and PWM dimming, offering flexibility for brightness control in different lighting applications.
  • Thermal Protection: The LED6001 features thermal shutdown protection to safeguard the device under high-temperature conditions.
  • Open LED Detection: The driver includes open LED detection and management, ensuring reliable operation and safety.
  • Compact Design: The evaluation board boasts a small footprint, ideal for prototyping and integration into existing systems.

Applications

The STEVAL-ILL049V12 is well-suited for a wide range of LED driving applications, including:

  • General-purpose LED lighting
  • Architectural lighting
  • LED panels and signage
  • Emergency lighting
  • Industrial and commercial lighting systems

With its robust design and versatile features, the STEVAL-ILL049V12 evaluation board is an invaluable tool for anyone looking to develop or test LED lighting solutions that require a reliable, high-performance LED driver.
