Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 100 W
Voltage - Output 24V
Current - Output 4.3A
Voltage - Input 320 ~ 480 VAC
Regulator Topology Flyback
Frequency - Switching 50 ~ 85kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6565, STC04IE170HV
Other Names 497-5679,-497-5679
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3B992
HTSUS 8473.30.1180
Win Source Part Number 1284233-STEVAL-ISA015V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA015V2 CAD Model

Description

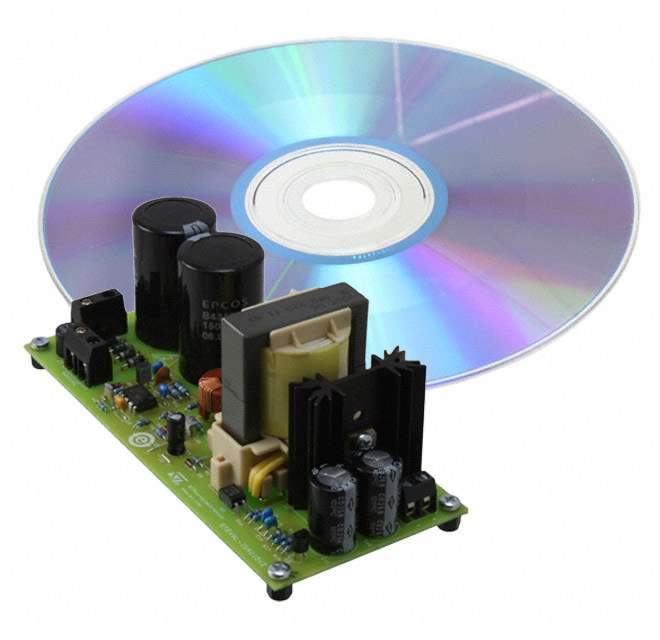

STEVAL-ISA015V2 - Voltage Regulator Evaluation Board from STMicroelectronics

The STEVAL-ISA015V2 is a state-of-the-art evaluation board designed by STMicroelectronics, specifically crafted for testing and evaluating the performance of advanced voltage regulators. As a part of STMicroelectronics' extensive product evaluation tools, this board facilitates designers and engineers in assessing the features and capabilities of certain voltage regulator ICs under various conditions.

At the heart of the STEVAL-ISA015V2 is a highly efficient, fixed-frequency step-down switching regulator that is optimized for a compact footprint and high energy efficiency. This regulator is capable of delivering a stable and precise output voltage, ensuring reliable operation for sensitive electronic components. The board is designed to handle a wide input voltage range, making it versatile for use in a variety of applications, from consumer electronics to industrial systems.

The evaluation board comes equipped with several key features that enable comprehensive testing. These include adjustable output voltage settings, overcurrent protection, thermal protection, and under-voltage lockout. The onboard components are carefully selected to provide a clear representation of the regulator's performance in real-world scenarios.

For ease of use, the STEVAL-ISA015V2 includes connectors and test points that allow for straightforward integration into existing setups and easy access to measure electrical parameters. The board's layout is thoughtfully designed to minimize noise and maximize the performance of the voltage regulator. Additionally, the evaluation board is compatible with a variety of external loads, making it a flexible tool for testing different power scenarios.

Engineers and designers looking to implement STMicroelectronics voltage regulators into their designs will find the STEVAL-ISA015V2 an invaluable resource. The board not only demonstrates the capabilities of the regulators but also provides insights into optimizing circuit design for improved power management. With this evaluation board, STMicroelectronics continues to support innovation and development in the field of power electronics.
