Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Type Power Management
Function Digital Power Controller
Utilized IC / Part STNRG388A
Supplied Contents Board(s)
Secondary Attributes Graphical User Interface
Base Product Number STEVAL
Other Names 497-16246,-1138-STEVAL-ISA164V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284585-STEVAL-ISA164V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA164V1 CAD Model

Description

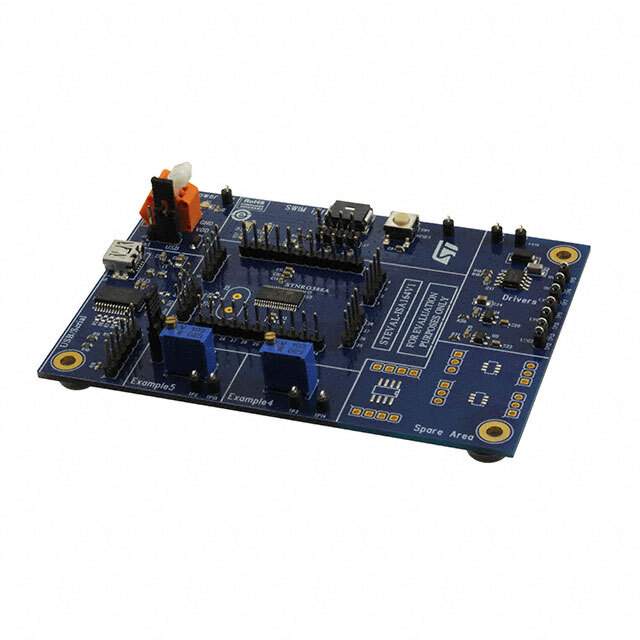

STEVAL-ISA164V1 Evaluation Board from STMicroelectronics

The STEVAL-ISA164V1 is a high-performance evaluation board designed by STMicroelectronics, tailored for power management and energy-efficient applications. This evaluation board showcases the capabilities of the L7987, a robust 61 V, 3 A step-down switching regulator with a wide input voltage range and minimized power consumption.

The L7987 regulator incorporated in the STEVAL-ISA164V1 is suitable for a diverse array of applications, thanks to its flexible input voltage range from 4.5 V to 61 V, which allows the board to address various power supply scenarios, including industrial, automotive, and consumer electronics. The high switching frequency, which can be adjusted up to 1 MHz, enables the use of small-sized external components, thereby reducing the overall footprint and bill of materials.

A key feature of the STEVAL-ISA164V1 is its high efficiency, which can reach up to 95%, ensuring reduced heat dissipation and enhanced reliability. The board provides an adjustable output voltage that can be set from 0.8 V to VIN, with a maximum output current of 3 A, making it suitable for powering complex digital systems that require stable and efficient voltage supply.

The evaluation board comes equipped with several protection features, including overcurrent protection, thermal shutdown, and overvoltage protection, which contribute to the safe operation of the end application under various conditions. Additionally, the board includes an enable pin for power sequencing and a power-good signal for real-time monitoring of the system status.

For designers and engineers looking to expedite their development process, the STEVAL-ISA164V1 offers an excellent platform for testing and prototyping. Its compact design, comprehensive documentation, and compatibility with the eDesignSuite software tool from STMicroelectronics make it an invaluable resource for accelerating the design of power supply circuits.

Overall, the STEVAL-ISA164V1 evaluation board is a testament to STMicroelectronics' commitment to providing innovative, high-quality products for the electronics industry, with an emphasis on performance, efficiency, and reliability.
