Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series MEMS
Package Box
Product Status Obsolete
Sensor Type Gyroscope, 2 Axis
Sensing Range ±30°/sec
Interface Analog
Sensitivity 33.3mV/°/s
Embedded Yes, MCU, 8-Bit
Supplied Contents Board(s)
Utilized IC / Part LPR403AL
Other Names 497-10604,STEVALMKI099V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283657-STEVAL-MKI099V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI099V1 CAD Model

Description

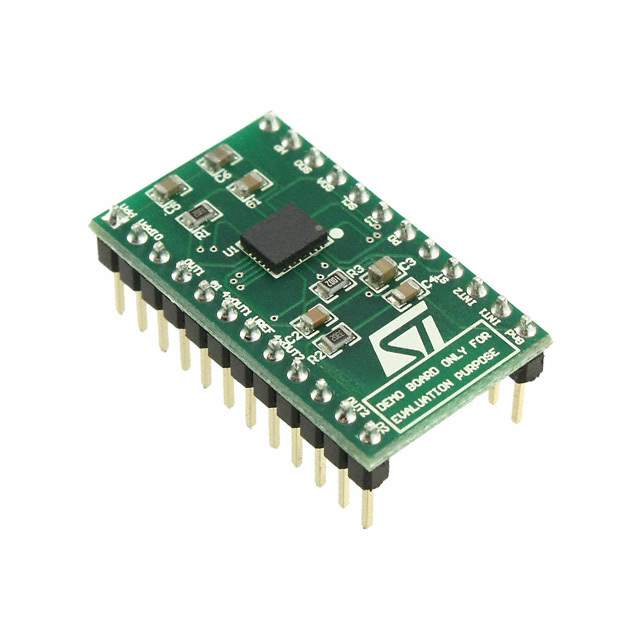

The STEVAL-MKI099V1 from STMicroelectronics is a comprehensive evaluation platform designed for testing and development with ST's state-of-the-art motion MEMS (Micro-Electro-Mechanical Systems) and environmental sensors. This versatile evaluation board is an excellent tool for engineers and developers who need to assess the performance of various sensors in real-world conditions before integrating them into their designs.

At the heart of the STEVAL-MKI099V1 is a range of sensors that offer a variety of functionalities. These include accelerometers, gyroscopes, magnetometers, and environmental sensors that can measure parameters such as pressure, temperature, and humidity. The board is ideal for applications in mobile devices, wearable technology, game consoles, and a variety of industrial and medical applications where precise motion tracking and environmental data are crucial.

The board interfaces with ST's Unico GUI (Graphical User Interface) software, which allows for easy configuration of the sensors as well as real-time data visualization and logging. This user-friendly interface significantly simplifies the evaluation process, making it accessible even to those with limited experience in sensor technology.

Additionally, the STEVAL-MKI099V1 is designed with flexibility in mind, featuring a DIL 24-pin socket which makes it compatible with a wide range of ST's adapter boards for MEMS sensors. This modularity ensures that the evaluation board can be used for a broad spectrum of ST sensors, providing a future-proof solution for ongoing and upcoming development projects.

Key features of the STEVAL-MKI099V1 include:

  • Comprehensive sensor evaluation capabilities
  • Compatibility with ST's Unico GUI software for easy setup and data analysis
  • Modular design with DIL 24-pin socket for various sensor adapters
  • Direct connection to a PC through a USB interface
  • Wide application range from consumer electronics to industrial and medical devices

The combination of advanced sensor technology, user-friendly software, and a modular approach makes the STEVAL-MKI099V1 an indispensable tool for any professional involved in the development of sensor-enabled products.
