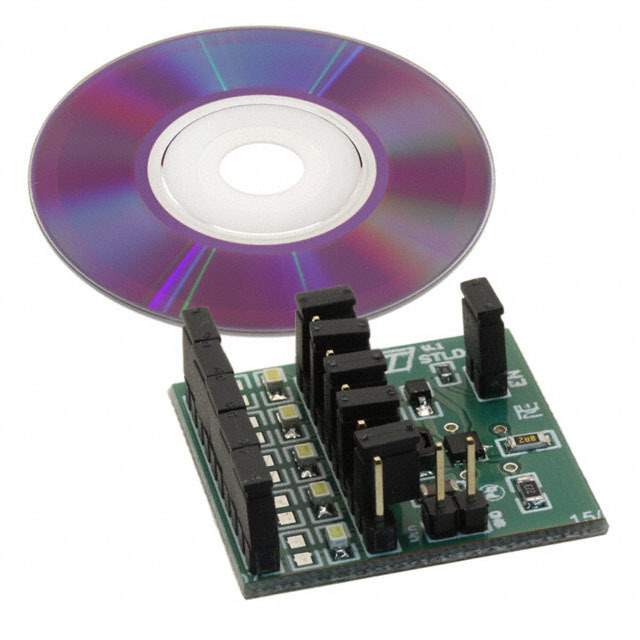

STEVAL-TLL001V1 - STMicroelectronics LED Array Driver Evaluation Board

The STEVAL-TLL001V1 from STMicroelectronics is a highly efficient evaluation board designed specifically for driving LED arrays. This advanced product is part of ST's portfolio of evaluation tools that allow designers and engineers to test the capabilities and features of their LED driving solutions in real-world scenarios.

This evaluation board is built around the STP16CPC26, which is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The board's primary function is to demonstrate the capabilities of the STP16CPC26 in driving LEDs with constant current for uniform brightness, making it an ideal solution for a wide range of applications including signage, display backlights, and decorative lighting.

The STEVAL-TLL001V1 allows for the control of each individual LED in the array, enabling users to create dynamic lighting effects and patterns. It supports a wide range of input voltages and provides adjustable current output to cater to different LED configurations and power requirements. This flexibility ensures that the evaluation board can be used with various types of LEDs, offering a versatile platform for testing and development.

Key features of the STEVAL-TLL001V1 include:

• 16 constant current output channels
• Adjustable output current through external resistor
• Open and short LED detection
• Thermal shutdown protection
• 3.3V or 5V supply voltage
• Shift register with 30 MHz clock frequency
• SPI interface for device control and diagnostics

The board also comes with a comprehensive set of documentation, including a user manual, schematic diagrams, and application notes, which provide valuable insights into the setup and operation of the board. This makes the STEVAL-TLL001V1 an excellent educational tool for those looking to learn more about LED driving technology.

Whether you are a professional engineer requiring a reliable platform for prototyping or a hobbyist exploring the intricacies of LED lighting, the STEVAL-TLL001V1 evaluation board from STMicroelectronics offers a robust and user-friendly solution that will meet and exceed your expectations.
