Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Outputs and Type 1, Non-Isolated
Supplied Contents Board(s)
Utilized IC / Part STLD41
Base Product Number STEVAL
Other Names 497-12071,STEVALTLL011V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3B992
HTSUS 8473.30.1180
Win Source Part Number 1283847-STEVAL-TLL011V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL011V1 CAD Model

Description

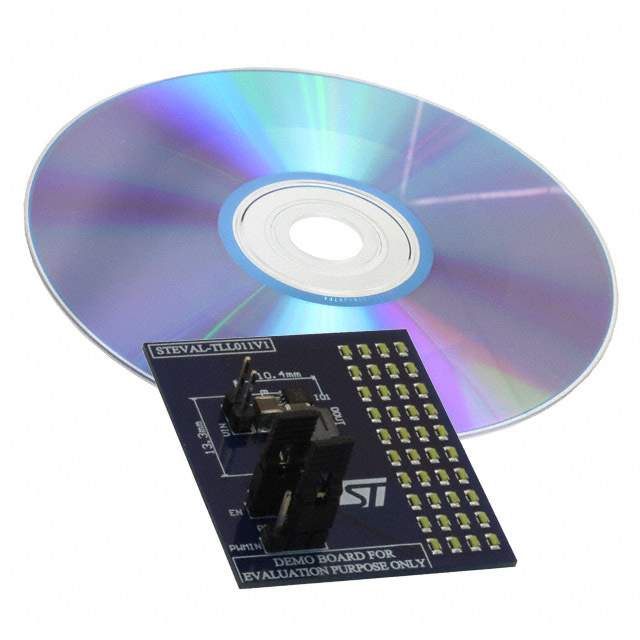

STEVAL-TLL011V1 - LED Array Driver Demonstration Board by STMicroelectronics

The STEVAL-TLL011V1 is a state-of-the-art demonstration board presented by STMicroelectronics, designed for driving LED arrays. This innovative board is based on the STP16CPC26, which is a monolithic, low-voltage, low-current power 16-bit shift register designed for LED panel displays. The board's primary application is to showcase the capabilities of the STP16CPC26 in driving LEDs with high efficiency and minimal power dissipation.

The STEVAL-TLL011V1 is equipped with a series of features that make it an ideal choice for those looking to develop or prototype LED lighting solutions. It operates over a wide supply voltage range, which allows for flexible adaptation to different power supplies, making it suitable for a variety of LED lighting applications. Additionally, the board supports a constant current output that can be adjusted up to 100 mA per channel, providing uniform brightness across the LED array.

One of the key benefits of the STEVAL-TLL011V1 is its thermal management capabilities. The board has been designed with an efficient heat dissipation system, ensuring that the LEDs and driver IC maintain optimal operating temperatures, thus extending the life of the components. The thermal design also allows for high-density mounting of LEDs, which is essential for applications requiring compact lighting solutions.

For developers looking to customize their applications, the STEVAL-TLL011V1 offers flexibility through its cascading feature. Multiple boards can be connected in series to drive an extended number of LEDs without compromising signal integrity, thanks to the built-in error detection feature of the STP16CPC26. This makes the board scalable for larger LED array projects.

With its robust design and versatile features, the STEVAL-TLL011V1 is an excellent demonstration platform for those interested in creating advanced LED lighting systems. Whether it's for architectural lighting, signalization, or display panels, this demonstration board from STMicroelectronics provides a reliable and efficient solution for driving LED arrays.

For more information, technical specifications, or to purchase the STEVAL-TLL011V1, visit the STMicroelectronics website or contact an authorized distributor.
