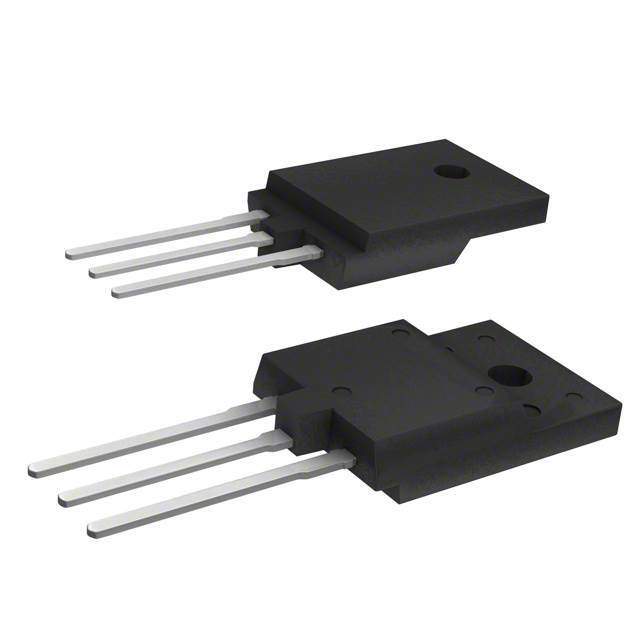

The STGFW40V60DF is a high-performance Field Stop Trench IGBT produced by STMicroelectronics, renowned for its efficiency and reliability in a wide range of power applications. This IGBT is designed using an advanced trench gate field-stop structure, which enables it to achieve an optimal balance between conduction and switching losses, making it highly suitable for high-frequency operations.

Key Features:

• Voltage Rating: The device boasts a maximum collector-emitter voltage rating of 600V, which allows it to handle high voltage applications with ease.
• Current Rating: With a continuous collector current rating of 40A at 25°C, the STGFW40V60DF can manage significant power levels, making it ideal for demanding electrical environments.
• Low On-State Voltage: The on-state voltage drop is minimized due to the field stop layer and trench gate structure, resulting in reduced power dissipation and improved efficiency.
• High Switching Speed: Fast switching characteristics are a hallmark of this IGBT, which is critical for applications requiring high-frequency operation.
• Co-Packaged Free-Wheeling Diode: It includes an integrated ultra-fast soft recovery anti-parallel diode, which enhances performance during the freewheeling phase of operation.

Applications:

The STGFW40V60DF is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Power Factor Correction (PFC) circuits
• Induction Heating Systems
• Welding Equipment

Advantages:

The STGFW40V60DF from STMicroelectronics provides numerous advantages for designers, such as:

• Improved thermal performance due to low on-state voltage, which reduces the need for extensive cooling systems.
• Enhanced ruggedness and reliability are ensured by the robust design, which can withstand challenging industrial environments.
• Optimized for high-frequency operation, enabling more efficient designs and smaller form factors for end products.

Overall, the STGFW40V60DF is a testament to STMicroelectronics' commitment to delivering high-quality power semiconductors that meet the evolving needs of modern power electronic systems.
