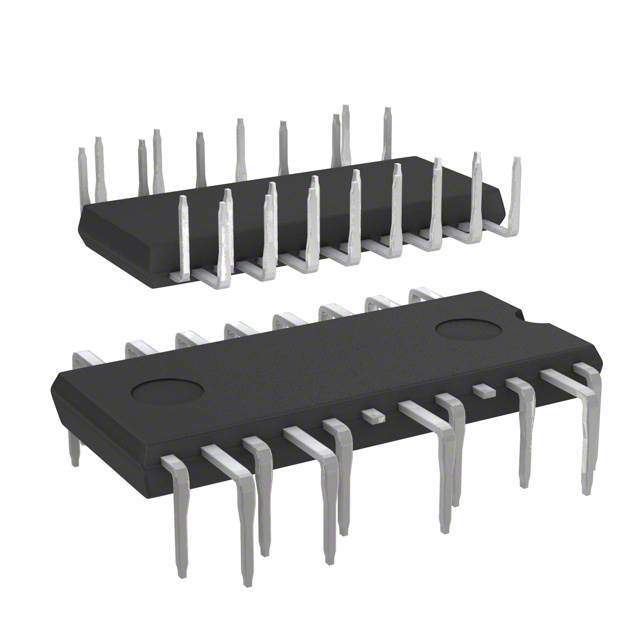

The STGIPQ3H60T-HZ is a cutting-edge Intelligent Power Module (IPM) developed by STMicroelectronics, designed to offer a highly efficient and compact solution for advanced motor drive applications. This IPM integrates a three-phase inverter power stage with gate drivers and protection features in a single package, making it an ideal choice for driving three-phase brushless motors in a variety of applications such as air conditioners, washing machines, refrigerators, fans, and more.

Key Features:

• High Integration: The module combines IGBTs, freewheeling diodes, gate drivers, and protection circuitry in one compact package, simplifying design and reducing external component count.
• Advanced IGBT Technology: Utilizes STMicroelectronics' field-stop trench IGBTs, providing low on-state voltage drop and reduced switching losses for improved thermal performance and efficiency.
• Over-temperature Protection: Features an integrated temperature sensor for over-temperature protection, ensuring reliable operation and preventing damage from overheating.
• Under-voltage Lockout: The built-in under-voltage lockout (UVLO) function protects the device and the motor from operating at low efficiency during undervoltage conditions.
• Short-circuit Rated IGBTs: The IGBTs within the module are short-circuit rated, providing additional protection against electrical faults and enhancing overall system robustness.
• Optimized for 15kHz Switching Frequency: Designed to operate at a switching frequency up to 15kHz, allowing for a good balance between efficiency and electromagnetic interference (EMI) performance.
• Compact and Robust Package: Encased in a high-isolation, low thermal resistance package, it ensures safe operation and is suitable for high-density power applications.

Applications:

The STGIPQ3H60T-HZ is versatile and can be used in a wide range of applications, including but not limited to:

• Home appliances
• Air conditioning units
• Industrial motor drives
• Fans and blowers
• Pumps and compressors

With its blend of performance, integration, and protection, the STGIPQ3H60T-HZ from STMicroelectronics represents a reliable and efficient solution for designers looking to improve the performance and reliability of their motor drive systems.
