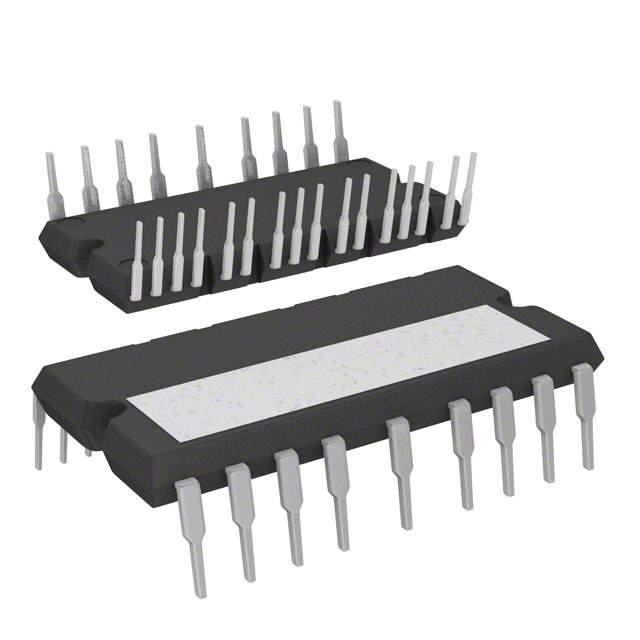

The STGIPS15C60 is a cutting-edge inverter power module designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This compact and efficient module is part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, which is specifically engineered for advanced motion control applications, such as those found in home appliances, fans, pumps, and other low-power motor drives.

Key Features

• Integrated Design: The STGIPS15C60 combines IGBTs, freewheeling diodes, and gate drivers in a single package, simplifying design and reducing assembly time for inverter motor control systems.
• High Efficiency: With its low-loss IGBT technology, the module ensures high efficiency in energy conversion, which is crucial for reducing heat generation and improving system reliability.
• Optimized Performance: The module is tailored to provide excellent electrical performance with fast switching capabilities, low conduction losses, and minimal EMI emissions.
• Advanced Protection: Built-in features such as under-voltage lockout (UVLO), smart shutdown function, and temperature monitoring protect the module from various fault conditions, enhancing system safety.
• Compact Footprint: The module's small form factor enables the development of compact inverter designs, allowing for more efficient use of space in end applications.

Applications

The versatility of the STGIPS15C60 makes it suitable for a wide range of applications. It is particularly well-suited for:

• Home appliances such as washing machines, refrigerators, and air conditioners
• Industrial motor drives including fans, pumps, and compressors
• Light industrial applications requiring up to 1.5 kW power ratings

Technical Specifications

The STGIPS15C60 operates with a supply voltage up to 600V and features a 15A current rating. It is designed to work efficiently within a wide temperature range, ensuring consistent performance under varying environmental conditions. The module's built-in gate drivers are optimized for 15V nominal voltage, providing precise control over the IGBTs.

For engineers and designers looking for a reliable and high-performance solution for their motor control needs, the STGIPS15C60 from STMicroelectronics offers an excellent balance of integration, efficiency, and protection in a compact package.
