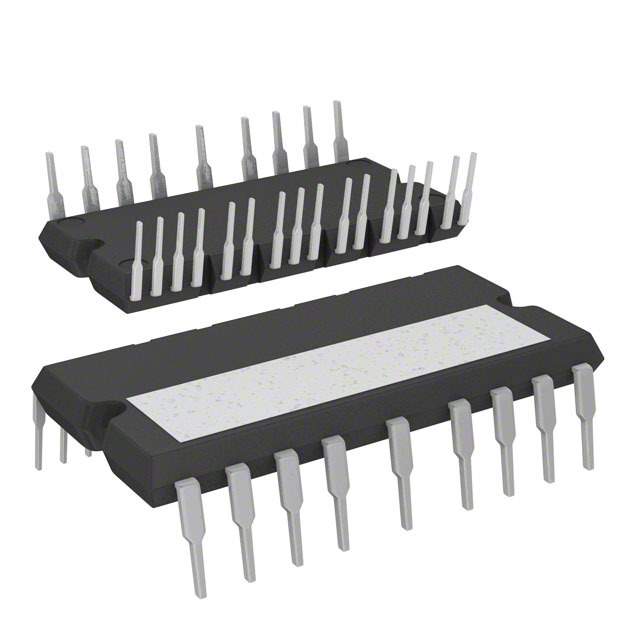

The STGIPS20C60T-H is a cutting-edge IGBT (Insulated Gate Bipolar Transistor) module designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This high-efficiency inverter-grade module is specifically engineered for advanced motor drive applications, including both industrial and automotive sectors.

Key Features

• Current Rating: The module is capable of handling a continuous inverter current of up to 20A, making it suitable for mid-power applications.
• Voltage Rating: With a maximum operating voltage of 600V, the STGIPS20C60T-H can comfortably manage the electrical demands of various motor drive systems.
• 3-Phase IGBT Inverter: It incorporates a three-phase bridge inverter structure which simplifies the design of three-phase motor drive systems.
• High-Speed Switching: The IGBT technology enables the module to switch at high frequencies, which is essential for efficiency and performance in modern inverter systems.
• Low Losses: Optimized for minimal conduction and switching losses, this module ensures an energy-efficient operation.
• Integrated Bootstrap Diodes: The inclusion of bootstrap diodes within the module package reduces component count and simplifies the PCB layout.
• Thermal Resistance: It features a low thermal resistance thanks to its advanced packaging, which enhances the thermal management of the system.
• Isolation: The module offers a high level of electrical isolation between the IGBT power circuit and the gate drive circuit.

Applications

The STGIPS20C60T-H is ideal for a wide range of applications. It is particularly well-suited for:

• AC motor drives
• UPS systems (Uninterruptible Power Supplies)
• Power inverters
• Welding equipment
• Industrial automation systems

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STGIPS20C60T-H is built to meet stringent quality standards, ensuring reliability and performance in even the most demanding conditions. It is designed to provide a long operational life and consistent performance, making it a trusted choice for designers and engineers worldwide.
