STGIPS40W60L1 - STMicroelectronics Integrated Power Module

The STGIPS40W60L1 is a cutting-edge Integrated Power Module (IPM) from STMicroelectronics, designed to offer an efficient and compact solution for driving three-phase motor applications. This IPM is part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, which is renowned for its high integration, reliability, and performance in motor drive applications.

At the heart of the STGIPS40W60L1 is a three-phase inverter bridge that consists of six IGBTs with a low on-state voltage drop to minimize power losses and enhance efficiency. These IGBTs are rated for a maximum continuous current of 40A and a maximum voltage of 600V, making the module capable of handling demanding power applications.

The module is equipped with a range of built-in features that simplify design and increase system reliability. These include short-circuit protection, over-temperature protection, and under-voltage lockout, all of which contribute to the safe operation of the power module. Additionally, the STGIPS40W60L1 incorporates an advanced gate drive circuit with an integrated bootstrap diode, which simplifies the PCB design by reducing the number of external components required.

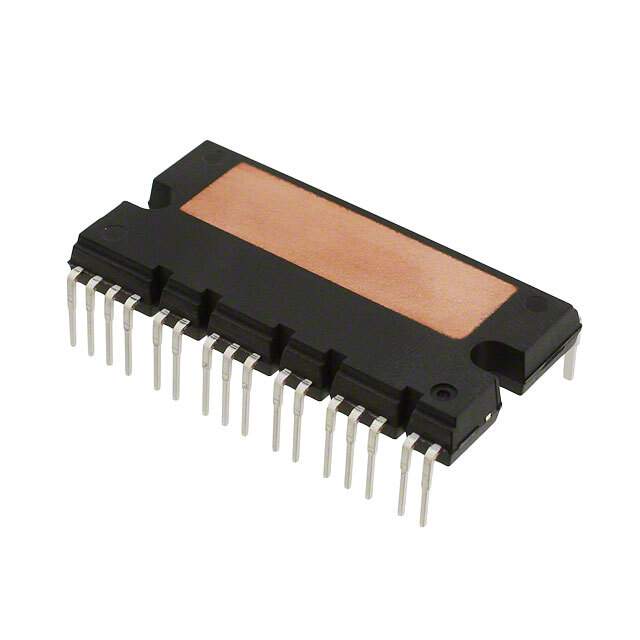

The STGIPS40W60L1 comes in a compact and insulated package, which not only saves space on the circuit board but also provides excellent thermal performance. The package is designed for easy mounting and is optimized for excellent heat dissipation, ensuring the module operates within its temperature limits even under high power conditions.

Applications for the STGIPS40W60L1 include a wide range of motor control systems, such as those found in home appliances, air conditioners, fans, pumps, and general-purpose inverters. Its high integration level, combined with its robustness and ease of use, makes it an ideal choice for designers looking to create efficient and reliable motor control solutions without the complexity of discrete component designs.

Overall, the STGIPS40W60L1 by STMicroelectronics represents a powerful and versatile solution for modern three-phase motor drives, delivering performance, integration, and reliability in a user-friendly package.
