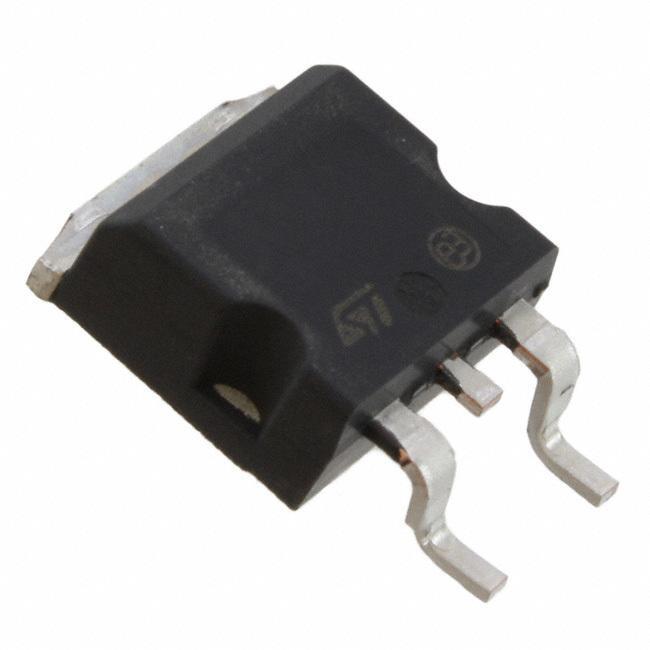

STH3N150-2

Part No STH3N150-2
Manufacturer STMicroelectronics
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 1500V 2.5A H2PAK-2
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 1500V
Continuous Drain Current at 25°C 2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 29.3nC @ 10V
Max Input Capacitance 939pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 140W (Tc)
Maximum Rds On at Id,Vgs 9 Ohm @ 1.3A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package H2PAK
Dimension TO-263-3, D2Pak (2 Leads + Tab) Variant
Win Source Part Number 1103090-STH3N150-2
Family Name STH3N150-2
Introduction Date February 08, 2013
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STH3N150-2 CAD Model

Description

STH3N150-2 from STMicroelectronics is an RF MOSFET in the Transistors - FETs, MOSFETs - RF category, suited for engineers building or maintaining high-frequency power and signal amplification stages. Devices in this class are commonly evaluated for RF power applications, industrial RF equipment, broadcast-related designs, test platforms, and other circuits where efficient switching or amplification at radio frequencies is important. For sourcing teams and design engineers, the value of this part is tied to STMicroelectronics brand recognition, potential suitability for established RF architectures, and use in replacement or continuity planning for existing designs. The current lifecycle status for STH3N150-2 is information not available, so teams should confirm availability and long-term support directly with STMicroelectronics or authorized distributors before locking it into new programs. RoHS compliance information is also not available in the provided data. Engineers should verify the latest environmental compliance status, declarations, and datasheet details through official manufacturer documentation before procurement or regulatory submission.
