STL36DN6F7 Power MOSFET by STMicroelectronics

The STL36DN6F7 is a high-performance power MOSFET from STMicroelectronics, designed to deliver efficiency and reliability for a wide range of applications. This device is part of STMicroelectronics' STripFET™ F7 series, which is known for its low on-state resistance and low gate charge, making it an excellent choice for power management tasks where energy conservation is paramount.

Key Features

• Low Threshold Voltage: The STL36DN6F7 boasts a low threshold voltage, ensuring that it can be driven at lower gate voltages, which is beneficial for low-power applications and contributes to its overall efficiency.
• High Current Capability: With a continuous drain current (ID) rating of up to 30 A, this MOSFET can handle significant current loads, making it suitable for high-power circuits.
• Low On-State Resistance (RDS(on)): One of the standout features of this device is its extremely low on-state resistance, typically just 0.036 Ohm. This characteristic minimizes power losses during operation, enhancing system efficiency.
• 100% Avalanche Tested: The STL36DN6F7 is rigorously tested for avalanche performance, ensuring robustness and reliability under stress conditions.

Applications

The STL36DN6F7 is versatile and can be used in various applications, including:

• Switching regulators
• Power management solutions
• DC-DC converters
• Motor control circuits
• Automotive applications

Package and Environmental Compliance

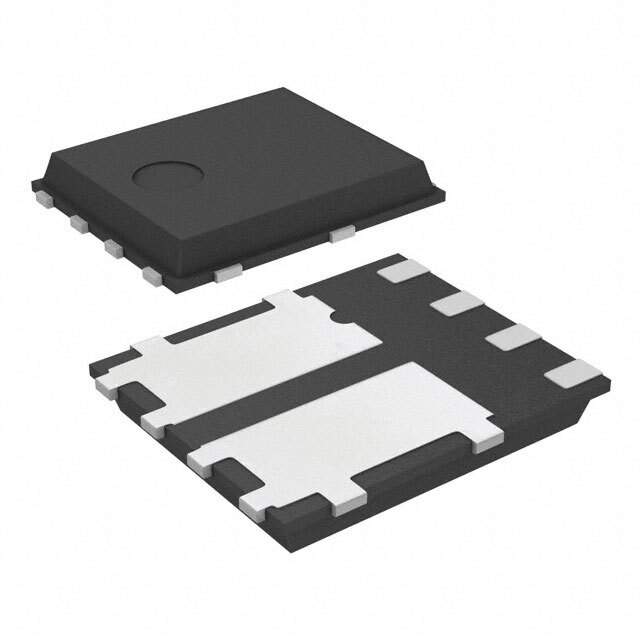

The STL36DN6F7 is available in a surface-mount PowerFLAT 5x6 package, which not only saves space but also enhances thermal performance. It is also compliant with RoHS and Halogen-Free environmental standards, reflecting STMicroelectronics' commitment to environmental sustainability.

In conclusion, the STL36DN6F7 from STMicroelectronics is a robust and efficient power MOSFET that is well-suited for designers looking to optimize power consumption and performance in their electronic designs. With its low on-state resistance, high current capability, and environmental compliance, it represents a reliable and eco-friendly solution for a variety of power applications.
