The STL7DN6LF3 is a high-performance N-channel MOSFET brought to you by STMicroelectronics, a global semiconductor leader known for their state-of-the-art electronic components. This particular MOSFET is part of the STripFET™ F3 series, which is renowned for offering excellent on-state resistance (R<sub>DS(on)) and low gate charge (Q<sub>g), making it an ideal choice for a wide range of power management applications.

Key Features

• Low Threshold Drive: The STL7DN6LF3 is designed to operate at a low gate threshold voltage, which makes it suitable for use in low-voltage applications and ensures ease of drive and high efficiency.
• High Current Capability: With a continuous drain current (I<sub>D) of up to 60A, this MOSFET can handle high current loads, making it perfect for demanding power applications.
• Low On-Resistance: Featuring an extremely low on-state resistance of typically 6 mΩ, the STL7DN6LF3 ensures minimal power loss and heat generation during operation, contributing to the overall system reliability and efficiency.

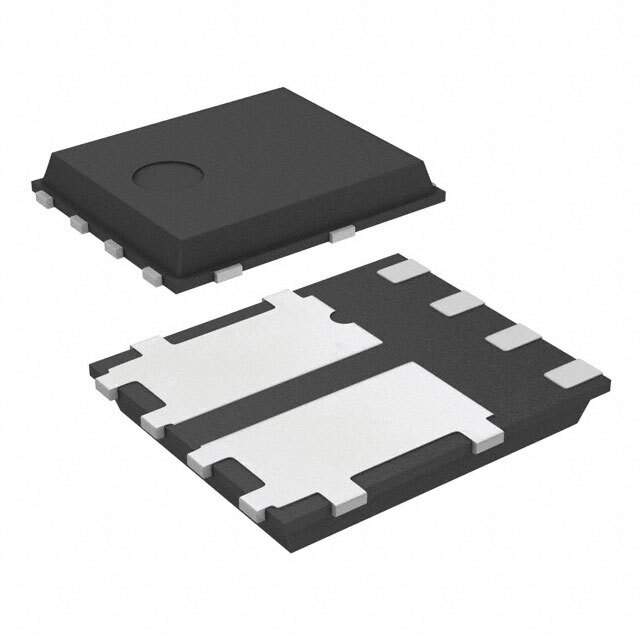

• Enhanced Power Density: The device's compact PowerFLAT™ 5x6 package enables a high power density, which is crucial for space-constrained applications.

Applications

The STL7DN6LF3 is versatile and can be used in a variety of applications, including:

• High-efficiency DC/DC converters
• Motor control circuits
• Power management solutions
• Load switches
• Battery management systems
• Computing and server power supplies

The STL7DN6LF3 is a testament to STMicroelectronics' commitment to providing advanced technology for power efficiency and management. Its robust design and impressive electrical characteristics make it a preferred choice for engineers looking to enhance their power systems' performance.
