STLD125N4F6AG - Power MOSFET from STMicroelectronics

The STLD125N4F6AG is a high-performance Power MOSFET brought to you by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This MOSFET is part of the STripFET F6 series, which is renowned for providing excellent power efficiency and performance in a wide range of applications.

With a drain-source voltage (V<sub>DS) of 40V, the STLD125N4F6AG is designed to handle significant power levels, making it ideal for use in high-efficiency power supplies, motor control systems, and automotive applications. Its low threshold voltage ensures that the device can be easily driven at low voltages, which is particularly beneficial in battery-powered applications.

The STLD125N4F6AG boasts an ultra-low on-resistance (R<sub>DS(on)) of just 1.25 mΩ at 10 V, which significantly reduces conduction losses and improves overall system efficiency. This feature, coupled with a high continuous drain current (I<sub>D) of 120 A, makes this MOSFET a strong choice for high current applications, while also ensuring that power dissipation is kept to a minimum.

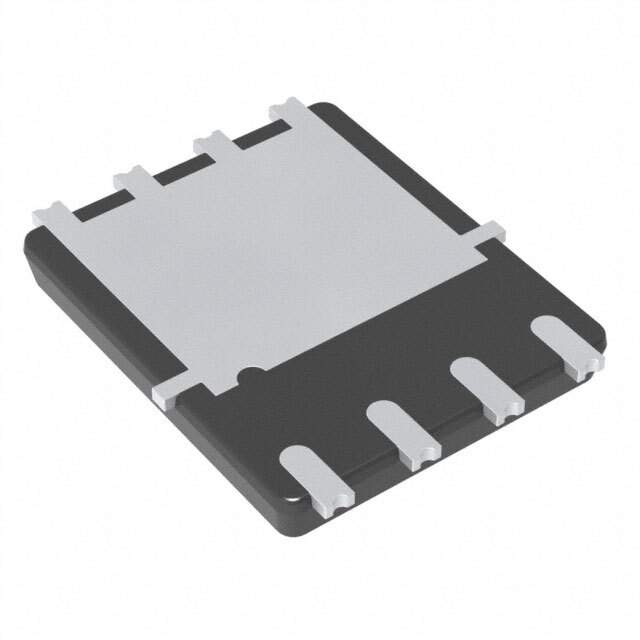

This MOSFET comes in a compact and robust PowerFLAT 5x6 package, which not only saves space on the PCB but also offers excellent thermal performance. Its package is designed to handle high thermal and mechanical stress, ensuring reliable operation even under harsh conditions. The STLD125N4F6AG also includes an integrated ESD protection, which provides added durability and longevity for the device by safeguarding it against electrostatic discharge events.

Thanks to its 100% avalanche tested design, the STLD125N4F6AG guarantees safe operation even during extreme conditions. This feature makes it a safe choice for designers looking to implement a robust power management system in their products.

Overall, the STLD125N4F6AG from STMicroelectronics is a powerful and efficient solution for a variety of power management applications. Its high current capability, low on-resistance, and robust package design make it a versatile and reliable component for your next project.
