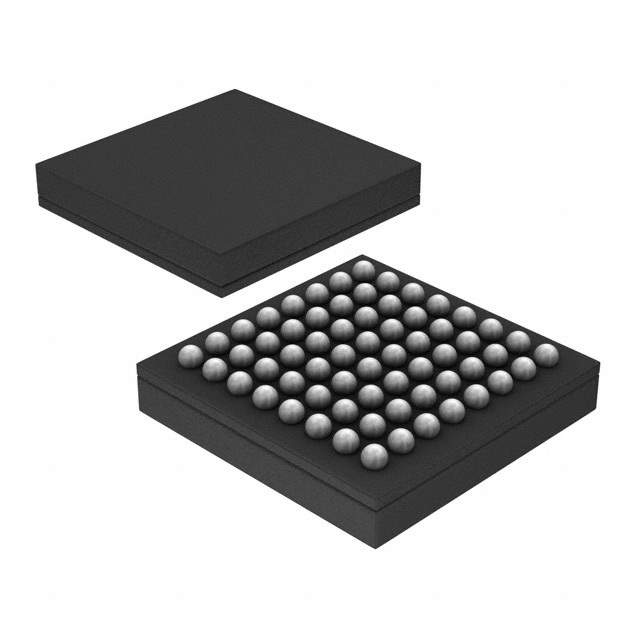

STM32F103R6H6A Microcontroller

The STM32F103R6H6A is a high-performance ARM Cortex-M3 based microcontroller from STMicroelectronics, designed for embedded applications requiring a balance of power efficiency and processing capability. This device is part of the STM32F1 series, known for its robust design, reliability, and flexibility in various applications ranging from industrial controls to consumer electronics.

Key Features

• Core: ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 72 MHz. The core offers high-speed embedded memories (Flash memory up to 64 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals.
• Performance: The STM32F103R6H6A delivers 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access.
• Energy Efficiency: Features low power, sleep, and standby modes for energy-saving operations, making it suitable for battery-powered and power-conscious applications.
• Connectivity: Offers a rich set of peripherals for connectivity, including USB 2.0 full-speed interface, CAN, and multiple serial interfaces (USARTs, SPIs, I2C).
• Analog Features: Comes with 2 ADCs converting at 12-bit, up to 16 channels, with up to 1 MSPS conversion rate. Also includes DACs, comparators, and general-purpose timers.
• Debugging and Programming: Supports JTAG/SWD interfaces for full-speed system development with an integrated bootloader supporting USART, USB, and CAN for firmware upgrades.
• Package: Available in a 64-pin LQFP package, providing ample pins for various I/O functions and peripherals.

Applications

The STM32F103R6H6A is ideal for a wide range of applications, such as motor drive and application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Conclusion

With its impressive mix of performance, power efficiency, and peripheral integration, the STM32F103R6H6A from STMicroelectronics stands out as a versatile and reliable choice for designers looking to develop advanced and power-conscious embedded systems.
