Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 84MHz
Connectivity I2C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 36
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 10x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 48-UFQFN Exposed Pad
Supplier Device Package 48-UFQFPN (7x7)
Base Product Number STM32F401
Standard Package 1,560
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262767-STM32F401CBU3
Ultra Librarian 3D Model Ultra Librarian STM32F401CBU3 CAD Model

Description

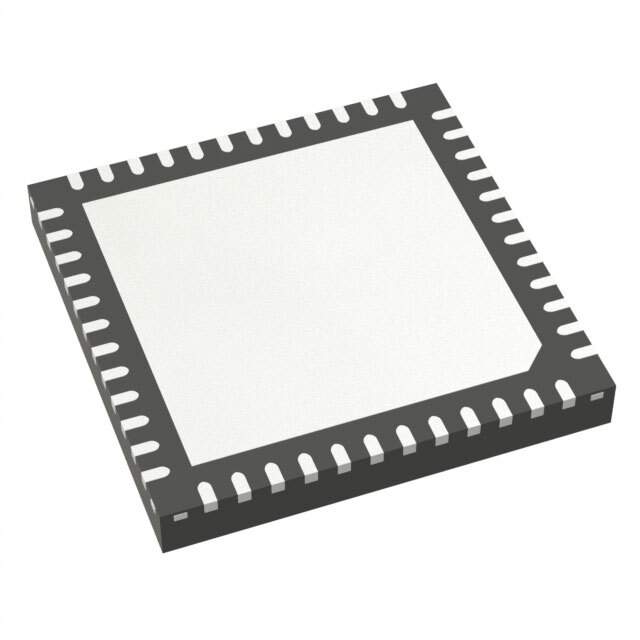

STM32F401CBU3 Microcontroller by STMicroelectronics

The STM32F401CBU3 is a high-performance foundation line microcontroller from STMicroelectronics, which is part of their STM32F4 series renowned for its advanced digital signal processing (DSP) and floating-point unit (FPU) capabilities. This microcontroller is based on the ARM Cortex-M4 core, which enables the device to operate at frequencies up to 84 MHz, offering a balanced combination of power efficiency and processing power.

Designed for a wide range of applications, the STM32F401CBU3 is particularly suited for use in medical, industrial, and consumer applications. Its rich set of peripherals, combined with its enhanced I/O capabilities, makes it an ideal choice for applications that require complex and intensive tasks to be handled with precision and speed.

Key Features:

  • Core: ARM Cortex-M4 with FPU and DSP instructions, running at up to 84 MHz.
  • Memory: Comes with 128 KB of Flash memory and 32 KB of SRAM, providing ample space for application code and data storage.
  • Power Efficiency: Features multiple power-saving modes, including a low-power run mode and a standby mode with wakeup interrupt, ensuring efficient power management for battery-operated applications.
  • Communication Peripherals: Includes a range of serial communication interfaces such as I2C, SPI, USART, and UART, allowing for easy integration with other components and systems.
  • Timers: Advanced-control timers, general-purpose timers, and a SysTick timer to facilitate precise timing operations.
  • Analog Features: Equipped with 12-bit ADCs, DACs, and analog comparators for interfacing with analog sensors and performing signal conditioning.
  • Packages: Available in a 48-pin UFBGA package, which is ideal for space-constrained applications.
  • Development Ecosystem: Supported by a comprehensive set of software development tools, including STM32Cube software libraries and development kits for quick and easy development.

The STM32F401CBU3 also boasts a flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories. Its advanced connectivity and rich set of I/Os are complemented by a robust security system, including a hardware random number generator and CRC calculation unit, which are essential for secure communication and data integrity.

Overall, the STM32F401CBU3 microcontroller is a powerful and versatile choice for designers looking for a cost-effective yet capable solution for demanding applications that require floating-point arithmetic, digital signal processing, and advanced control capabilities.
