Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr STMicroelectronics
Series STM32L5
Package Bulk
Board Type Evaluation Platform
Type MCU 32-Bit
Core Processor ARM® Cortex®-M33
Platform Discovery
Utilized IC / Part STM32L562ZE
Mounting Type Fixed
Contents Board(s), LCD
Interconnect System Arduino R3 Shield, Pmod, STMod+
Base Product Number STM32
Other Names 497-STM32L562E-DK
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A002A4
HTSUS 8471.50.0150
Win Source Part Number 1283946-STM32L562E-DK
Ultra Librarian 3D Model Ultra Librarian STM32L562E-DK CAD Model

Description

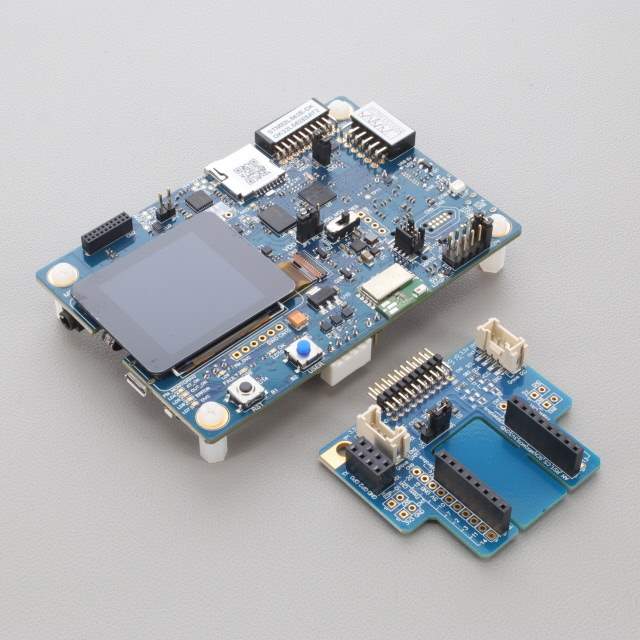

STM32L562E-DK Discovery Kit

The STM32L562E-DK Discovery Kit is a versatile development tool designed by STMicroelectronics to facilitate the exploration and development of applications for the STM32L5 Series of ultra-low-power microcontrollers. The STM32L562E-DK kit is particularly tailored for the STM32L562QEI6QU microcontroller, which is based on the high-performance Arm® Cortex®-M33 32-bit RISC core operating at up to 110 MHz. This microcontroller is further enhanced with the Arm® TrustZone® for Armv8-M and ST's security features, making it an ideal choice for security-sensitive applications.

The development kit comes packed with a range of features to support a wide array of functionalities:

  • A 4-inch capacitive touch LCD display with MIPI® DSI connector.
  • On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port.
  • Comprehensive free software libraries and examples available with the STM32Cube MCU Package.
  • Support for a wide range of integrated development environments (IDEs) including IAR™, Keil®, and STM32CubeIDE.
  • Flexible power-supply options: ST-LINK USB VBUS or external sources.
  • On-board memory: 512 Mbit Octal-SPI NOR Flash memory, 64 Mbit QSPI NOR Flash memory, and 2 Gbit Octal-SPI NAND Flash memory.
  • Various interfaces: USB OTG, Ethernet, microSD™ card, USART, SPI, I2C, CAN, GPIOs, and more.
  • On-board MEMS digital microphones and a SAI audio codec.
  • Multi-sensor support: digital accelerometer and magnetometer, digital gyroscope, digital humidity and temperature sensor, and ambient light sensor.
  • Pre-loaded demonstration software for a quick start in evaluating the capabilities of the microcontroller.

The STM32L562E-DK Discovery Kit is an excellent starting point for developers looking to harness the power and efficiency of the STM32L5 microcontroller series. With its rich set of peripherals, connectivity options, and security features, it's well-suited for a variety of applications, including industrial control, consumer electronics, Internet of Things (IoT) devices, and medical equipment. The kit's comprehensive documentation and software support ensure a smooth development experience, from initial setup to final product deployment.
