Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - MCU, DSP
Mfr STMicroelectronics
Series STM32MP1
Package Bulk
Product Status Obsolete
Type MPU
Core Processor ARM® Cortex®-A7, Cortex®-M4
Platform Discovery
Utilized IC / Part STM32MP157C
Mounting Type Fixed
Contents Board(s), LCD
Board Type Evaluation Platform
Operating System Linux
Interconnect System Arduino R3 Shield, Raspberry Pi HAT (40 pin)
Suggested Programming Environment GNU GCC, IAR EW, Keil MDK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8473.30.1180
Win Source Part Number 1354315-STM32MP157C-DK2
Ultra Librarian 3D Model Ultra Librarian STM32MP157C-DK2 CAD Model

Description

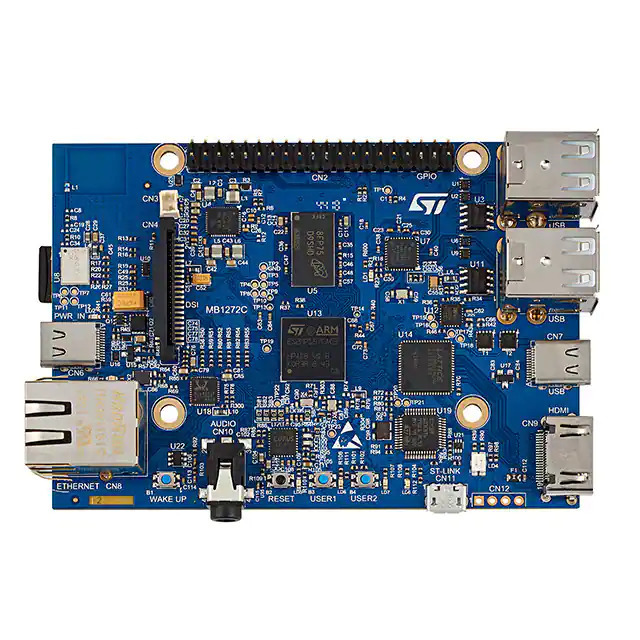

STM32MP157C-DK2 Discovery Kit from STMicroelectronics

The STM32MP157C-DK2 Discovery kit is a versatile development platform introduced by STMicroelectronics, designed to provide a quick and easy way for engineers and hobbyists to explore the features of the STM32MP1 microprocessor series. This Discovery kit is particularly tailored for applications that require high-quality audio, multi-sensory user interfaces, or security functions.

At the heart of the STM32MP157C-DK2 is the STM32MP157C multi-core processor, which includes dual Arm® Cortex®-A7 cores running at up to 650 MHz and a Cortex®-M4 core running at up to 209 MHz. This unique architecture enables real-time tasks on the M4 core to be managed separately from the main operating system running on the A7 cores, providing a highly flexible solution for complex applications.

The kit comes with a range of built-in features to facilitate development:

  • 4-inch WVGA TFT LCD with touch panel
  • Gigabit Ethernet compliant with IEEE-802.3ab
  • Four USB Type-A Host ports and one USB Type-C OTG port
  • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability
  • Audio codec, with a stereo headset jack including analog microphone input
  • MicroSD card slot, supporting standard and high-capacity SD cards
  • Wi-Fi® and Bluetooth® Low Energy module
  • 6-axis MEMS sensors, including a gyroscope and an accelerometer
  • Two push-buttons (user and reset)

The STM32MP157C-DK2 is designed to support a wide range of operating systems, including Linux® and Android™, and is fully supported by the STM32 ecosystem. This includes the comprehensive STM32CubeMP software tool, which provides a set of tools, libraries, and examples to accelerate development.

Developers can leverage the extensive I/O connectors that expose the microprocessor’s peripherals, enabling the creation of a wide variety of applications from industrial control systems to consumer electronics. Whether you are a seasoned developer or just starting, the STM32MP157C-DK2 Discovery kit offers the perfect platform to jump-start your next project.
