STTA1512PIRG - Ultra Fast Recovery Diode from STMicroelectronics

The STTA1512PIRG is a high-performance ultrafast recovery diode designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable components. This diode is specifically engineered to meet the demanding requirements of high-efficiency power supply systems and is widely used in applications such as switch-mode power supplies (SMPS), uninterruptible power supplies (UPS), and power factor correction circuits (PFC).

Key Features

• High Reverse Voltage: The STTA1512PIRG boasts a high reverse voltage rating, which makes it suitable for high-voltage applications, ensuring robust performance even under strenuous conditions.
• Ultrafast Recovery Time: With its ultrafast recovery time, this diode minimizes power losses and enhances efficiency, which is critical for energy-sensitive designs.
• Low Forward Voltage Drop: The low forward voltage drop feature contributes to reduced power dissipation and improved thermal efficiency, leading to a cooler operation and extended component lifespan.
• High Surge Current Capability: This diode can withstand high surge currents, providing reliable performance during transient conditions and ensuring the safety and longevity of the overall electrical system.
• Patented Structure: The innovative patented structure of the STTA1512PIRG enhances its electrical performance, making it an excellent choice for high-frequency applications.

Applications

Due to its robust design and high efficiency, the STTA1512PIRG is ideal for a variety of applications, including:

• Switch-Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Power Factor Correction (PFC) circuits
• Freewheeling diodes in converters and motor control circuits
• High-frequency rectification

Product Specifications

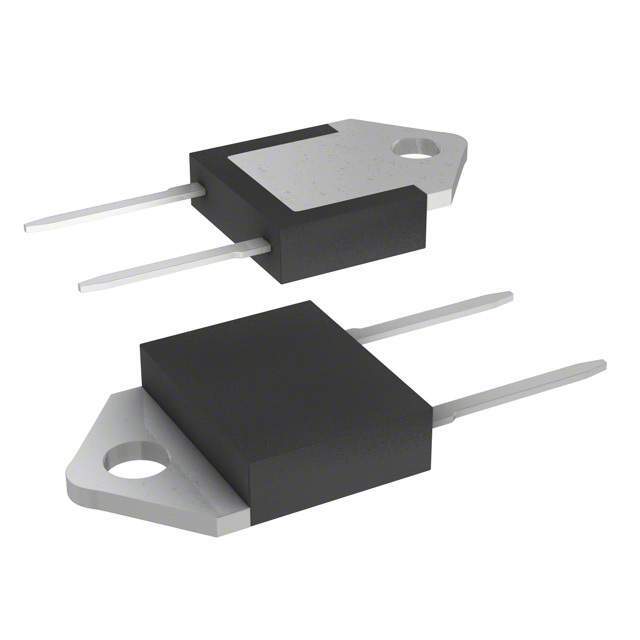

The STTA1512PIRG is encapsulated in an insulated package, which not only provides excellent thermal resistance but also ensures electrical isolation from the heatsink. The diode comes with the following specifications:

• Average Forward Current (IF(AV)): 15 A
• Repetitive Peak Reverse Voltage (VRRM): 1200 V
• Non-Repetitive Peak Forward Current (IFSM): 150 A
• Operating Junction Temperature Range: -40°C to 175°C
• Package: ISOTOP

With its superior performance and reliability, the STTA1512PIRG from STMicroelectronics is an excellent choice for designers looking to enhance the efficiency and robustness of their power management systems.
