Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Maximum) @ If 1.85V @ 30A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 70ns
Current - Reverse Leakage @ Vr 25μA @ 600V
Mounting Style Through Hole
Package DO-247-2 (Straight Leads)
Manufacturer Package DO-247
Operating Temperature - Junction 175°C (Maximum)
Win Source Part Number 1262192-STTH30R06W
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name STTH30R06W
Introduction Date October 18, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian STTH30R06W CAD Model

Description

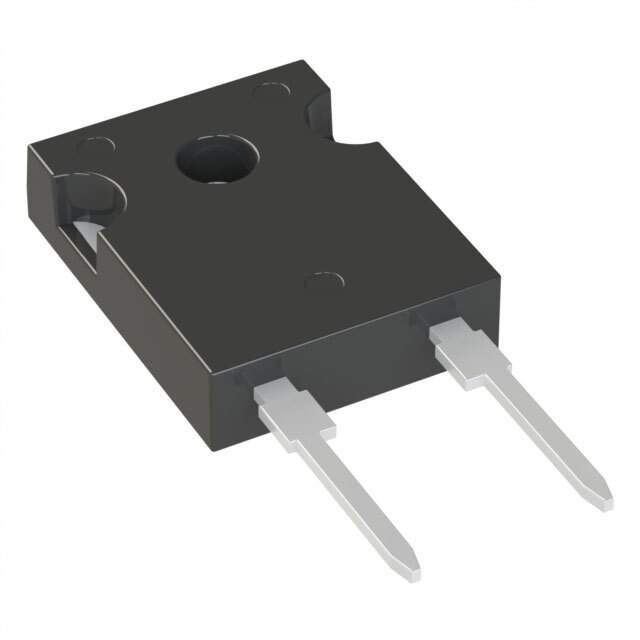

STTH30R06W - Ultrafast Recovery Diode

The STTH30R06W is a high-performance ultrafast recovery diode designed and manufactured by STMicroelectronics, a global semiconductor leader. This diode is specifically engineered to meet the stringent requirements of high efficiency in power conversion applications. With its exceptional switching capabilities and low power losses, the STTH30R06W is ideal for a range of applications, including switch-mode power supplies, high-frequency converters, and freewheeling diodes in power factor correction circuits.

Key Features:

  • High Reverse Voltage: With a reverse voltage of 600V, the STTH30R06W can handle high voltage environments, providing reliable performance in challenging conditions.
  • Ultrafast Soft Recovery: The diode features an ultrafast recovery time, minimizing switching losses and improving the efficiency of the overall system.
  • Low Forward Voltage Drop: A low forward voltage drop reduces power dissipation and enhances thermal efficiency, which is critical for maintaining the integrity of the device under high switching frequencies.
  • High Surge Current Capability: It is capable of withstanding high surge currents, ensuring robust performance during transient conditions.

Applications:

  • Switch-mode Power Supplies (SMPS)
  • Power Factor Correction (PFC) circuits
  • Snubber and clamping circuits
  • High-frequency inverters
  • Freewheeling diodes in various converter types

The STTH30R06W is housed in a TO-247 package, which offers excellent thermal performance and is suitable for high-power density designs. Its construction is optimized for reduced thermal resistance and increased heat dissipation, ensuring long-term reliability and stability.

STMicroelectronics provides comprehensive technical support for the STTH30R06W, including detailed datasheets, application notes, and simulation models to facilitate design-in processes and help engineers maximize the diode's performance in their applications.

In summary, the STTH30R06W ultrafast recovery diode from STMicroelectronics is a top-tier component for designers looking to enhance the efficiency and reliability of their power conversion systems. With its superior switching speed, high voltage capacity, and robust design, it stands out as a preferred choice for cutting-edge electronic solutions.
