The STW70N65DM6-4 is a high-performance, N-channel Power MOSFET produced by STMicroelectronics, a leading semiconductor company known for its innovative and reliable products. This Power MOSFET is designed to meet the demanding requirements of a wide range of electronic applications, particularly in the power supply and conversion sector.

Key Features

• Advanced Technology: The STW70N65DM6-4 is manufactured using STMicroelectronics' state-of-the-art MDmesh™ DM6 technology, which combines high voltage capability with low on-resistance and low gate charge, resulting in superior power efficiency and performance.
• High Voltage Rating: With a drain-source voltage (V<sub>DS) of 650V, this MOSFET can handle high voltage applications, making it suitable for industrial, automotive, and energy management systems.
• High Current Capacity: It has a continuous drain current (I<sub>D) of 70A at 25°C, providing the ability to drive high current loads with ease.
• Low On-Resistance: The on-resistance (R<sub>DS(on)) is exceptionally low, which minimizes conduction losses and enhances overall system efficiency.

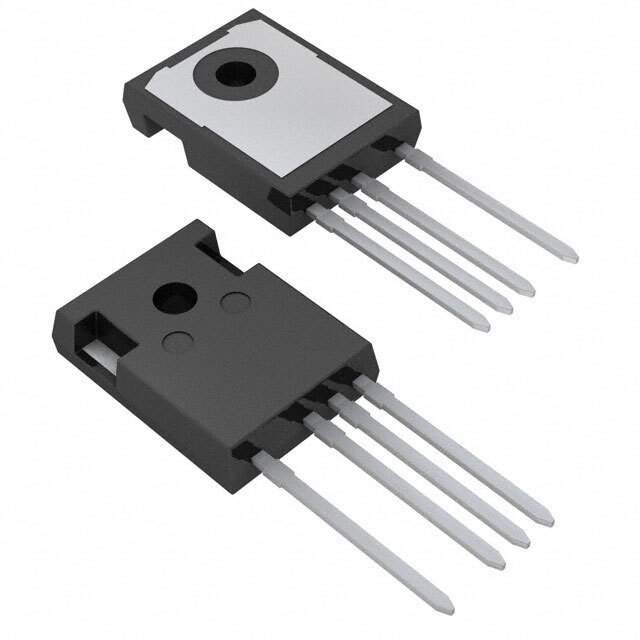

• Enhanced Thermal Performance: The device is encapsulated in a HiP247™ package, which offers excellent thermal performance and ensures reliability even under high temperature operating conditions.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche ruggedness, ensuring reliability and robustness in harsh environments.

Applications

The versatility of the STW70N65DM6-4 makes it an ideal choice for a broad range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• LED Lighting
• Welding Equipment
• Solar Inverters
• High-Efficiency DC-DC Converters
• Electric Vehicle (EV) Charging Stations

Conclusion

With its advanced technology, high voltage and current capabilities, low on-resistance, and robust package, the STW70N65DM6-4 from STMicroelectronics is a powerful solution for designers looking to improve efficiency and reliability in their power management systems. Its wide range of applications and the assurance of STMicroelectronics' quality make it a valuable component for any high-performance power electronics design.
