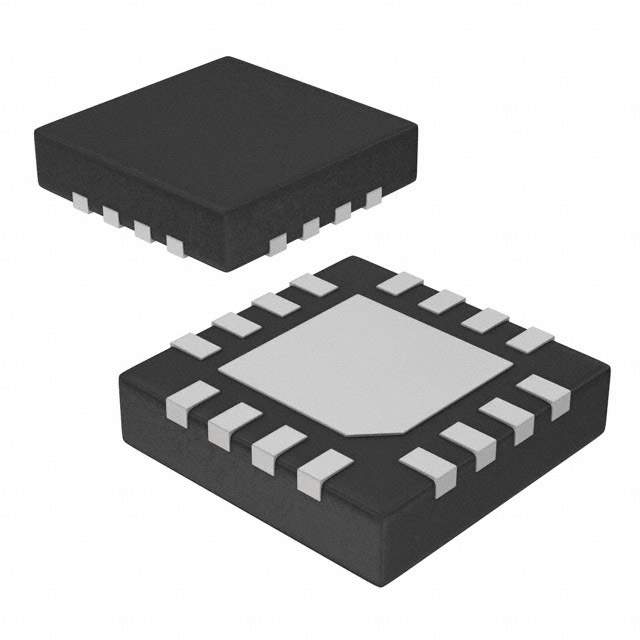

The TSX3704IQ4T is a high-precision, low-power, quad operational amplifier (op-amp) from STMicroelectronics, a global semiconductor leader. This device is part of ST's TSX3704 series and is designed to meet the requirements of a wide range of applications, including sensor signal conditioning, active filtering, and low-power audio amplification.

Key Features


• Low-Power Consumption: The TSX3704IQ4T is optimized for low-power applications, ensuring efficient operation with a typical supply current of just 900 µA, which is ideal for battery-powered devices.

• Wide Supply Voltage Range: It operates with a supply voltage ranging from 2.7V to 16V, providing flexibility in various circuit configurations and making it suitable for both single and dual supply operations.

• High Precision: With an input offset voltage of only 600 µV max for the industrial temperature range, this op-amp offers excellent accuracy for precision applications.

• Low Input Bias Current: The input bias current is as low as 1 pA, which is beneficial for applications requiring high input impedance.

• Stable Over Temperature: The TSX3704IQ4T has a temperature range of -40°C to +125°C, ensuring reliable performance across a wide range of environmental conditions.

• Quad Channel Configuration: The device features four independent op-amp channels in a single package, saving space and reducing component count in complex circuits.


Applications

The versatility of the TSX3704IQ4T makes it suitable for a variety of applications. It is commonly used in:


• Automotive sensor interfaces

• Battery-powered devices

• Power supply control

• Analog signal conditioning

• Audio electronics

• Medical instrumentation


With its combination of low power consumption, high precision, and stable performance over a wide temperature range, the TSX3704IQ4T from STMicroelectronics is a reliable choice for designers looking to optimize their analog circuits without compromising on efficiency or accuracy.
