The VNQ5E250AJTR-E is a sophisticated high-side driver manufactured by STMicroelectronics, a leader in semiconductor solutions. This component is part of the VIPower M0-7 series and is specifically designed to address the demanding requirements of automotive applications. Its robust design ensures reliable operation in the challenging environments typical of automotive electronics.

Key Features

• Integrated Channels: The device includes two independent high-side drivers, which can control various automotive loads with outstanding efficiency and precision.
• High Voltage Capability: It can handle operating voltages up to 36V, making it versatile for use in 12V automotive systems, including those subject to load dump conditions.
• Thermal Shutdown: To prevent damage from overheating, this high-side driver incorporates a thermal shutdown feature that ensures the device operates within safe temperature limits.
• Current Limitation: The VNQ5E250AJTR-E offers a current limitation function to safeguard the system against excessive current draw, which could otherwise lead to system failures.
• Status Feedback: Diagnostic feedback is available to monitor the status of each channel, providing critical information for system checks and maintenance.
• Protection Features: It includes protections against overvoltage, undervoltage, loss of ground, and loss of Vcc, ensuring the device's reliability under various fault conditions.

Applications

The VNQ5E250AJTR-E is ideal for a range of automotive applications, including but not limited to:

• Lamp driving
• Resistive and inductive loads control
• Valve and pump actuation

Quality and Reliability

As an automotive-grade product, the VNQ5E250AJTR-E meets stringent quality standards, including AEC-Q100 qualification. It is manufactured in compliance with the ISO/TS16949 certification, which is a testament to its high reliability and performance in automotive applications.

Packaging and Availability

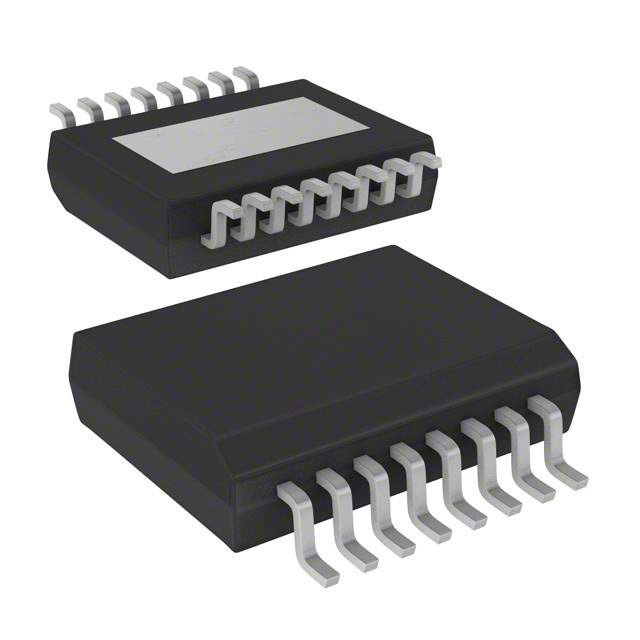

This high-side driver is available in a PowerSSO-16 package, which is designed for compact PCB layouts and efficient thermal dissipation. The VNQ5E250AJTR-E is also provided in tape and reel packaging, facilitating automated assembly processes and mass production.
