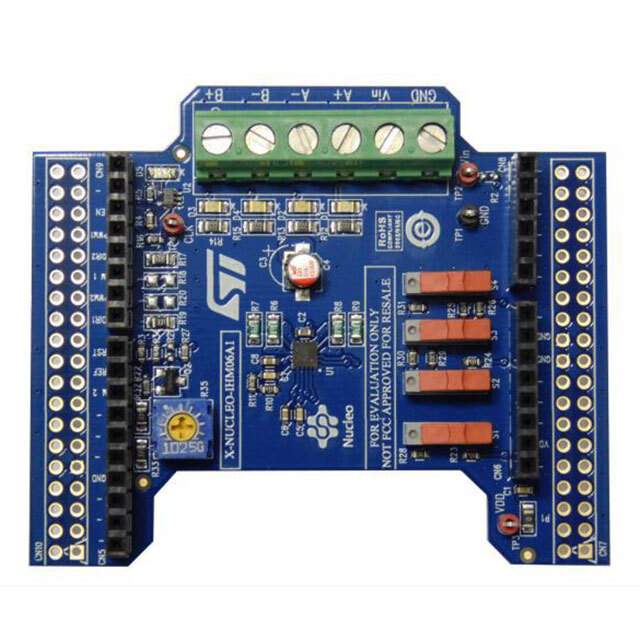

STMicroelectronics X-NUCLEO-IHM06A1 High Power Stepper Motor Driver

The X-NUCLEO-IHM06A1 from STMicroelectronics is a high-efficiency stepper motor driver expansion board designed to drive bipolar stepper motors with a wide range of operating voltages. This powerful and versatile board is compatible with the Arduino UNO R3 connector layout, and it is also fully supported by the expansive STM32 ODE (Open Development Environment).

This motor driver is based on the STMicroelectronics L6474 chip, which operates as a fully-integrated microstepping motor driver with a non-dissipative overcurrent protection. The X-NUCLEO-IHM06A1 is capable of delivering up to 5.6 A of current to the motor with adjustable off-time PWM current control to ensure smooth and precise motor movements.

Key Features:

• Operating voltage range from 8 V to 48 V
• Up to 5.6 A output peak current (2.8 A RMS)
• Adjustable PWM current control through 3 selectable decay modes
• Non-dissipative overcurrent protection and thermal shutdown
• Microstepping resolution up to 1/16th of a step
• Compatible with STM32 Nucleo boards
• Easy integration with Arduino UNO R3 and other microcontroller boards

The X-NUCLEO-IHM06A1 also features comprehensive development software, available through the STM32Cube software platform, which includes an X-CUBE-SPN6 software expansion for STM32Cube. This software provides a high-level API for motor control via the STM32 Nucleo board and ensures a seamless and user-friendly experience when developing applications for stepper motors.

This expansion board is an ideal choice for applications requiring precise and powerful stepper motor control, such as 3D printers, CNC machines, robotics, and a wide range of automation applications. The X-NUCLEO-IHM06A1 not only provides robust hardware but also the necessary software support to enable rapid development and integration into your projects.

For detailed technical specifications and application support, visit the official STMicroelectronics website or consult the X-NUCLEO-IHM06A1 datasheet and user manual.
