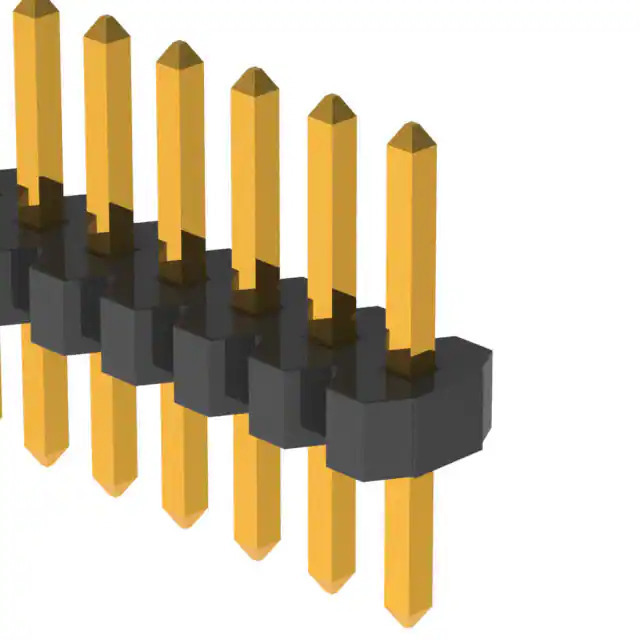

Same model may have multiple batches, images only for reference.

GRPB101VWVN-RC

Name: GRPB101VWVN-RC
Brand: Sullins Connector Solutions
SKU: 1366064
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	GRPB101VWVN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Series	-
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.091" (2.30mm)
Overall Contact Length	0.248" (6.30mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA9T), Nylon 9T
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	-
Current Rating (Amps)	1A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	Flash
Applications	-
Base Product Number	GRPB101
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366064-GRPB101VWVN-RC
Ultra Librarian 3D Model	Ultra Librarian GRPB101VWVN-RC CAD Model

Alternative Products

Description

The GRPB101VWVN-RC is a header connector from Sullins Connector Solutions.

Pitch: 0.050" (1.27mm)
Number of Positions: 10
Number of Rows: 1
Current Rating: 1A
Contact Material: Brass
Insulation Material: Polyamide (PA9T) and Nylon 9T
Flammability Rating: UL94 V-0
Shrouded: Unshrouded
Fastening Type: Push-Pull
Termination: Through Hole
Product Status: Active
