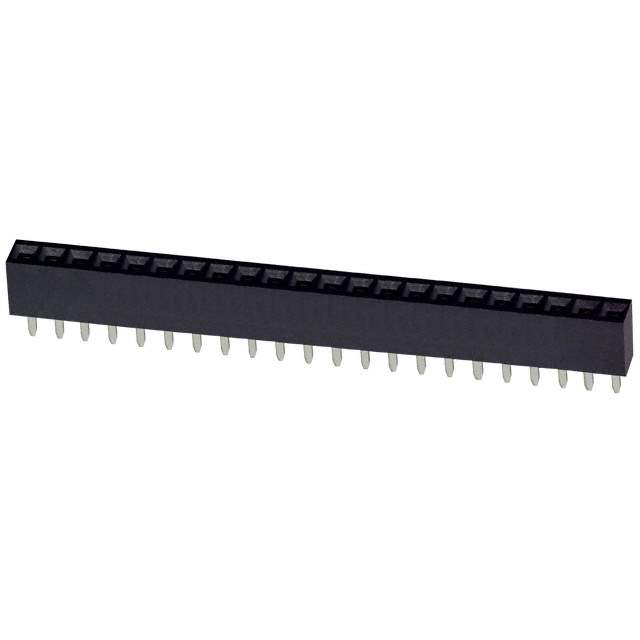

Same model may have multiple batches, images only for reference.

PPTC221LFBN-RC

Name: PPTC221LFBN-RC
Brand: Sullins Connector Solutions
SKU: 510512
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PPTC221LFBN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER FEMALE 22POS.1" TIN
Datasheet	PPTC221LFBN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Sullins Connector Solutions
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	22
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	250V
Insulation Material	Polyester
Contact Shape	Square
Win Source Part Number	1093802-PPTC221LFBN-RC
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PPTC221LFBN-RC CAD Model

Description

The Sullins Connector Solutions PPTC221LFBN-RC header connector is a through-hole style board-to-board connector with 22 female socket contacts.

Style: Through-hole board-to-board
Contacts: 22 female socket
Fastening Type: Push-pull
Insulation Material: Polyester
Voltage Rating: 250V
Current Rating: 3A
Contact Finish: Tin
Insulation Color: Black
Contact Shape: Square
Flammability Rating: UL94 V-0
Operating Temperature Range: -40°C to 105°C
Suitable for: Use in various electronic applications where board-to-board connections are required
