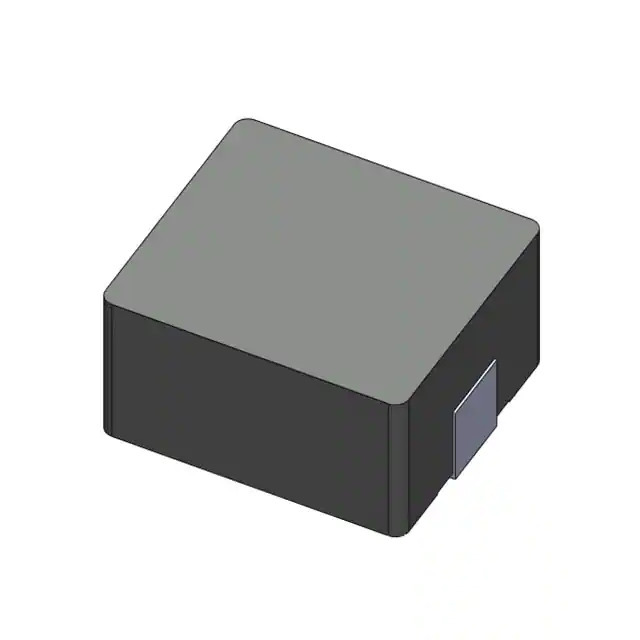

Same model may have multiple batches, images only for reference.
0630CDMCCDS-3R3MC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

0630CDMCCDS-3R3MC

Part No 0630CDMCCDS-3R3MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 8.4A 22MOHM SMD
Datasheet
0630CDMCCDS-3R3MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 0630CDMC/DS
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 8.4 A
Current - Saturation (Isat) 11.4A
Shielding Shielded
DC Resistance (DCR) 22mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package SMD
Size / Dimension 0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370643-0630CDMCCDS-3R3MC
Ultra Librarian 3D Model Ultra Librarian 0630CDMCCDS-3R3MC CAD Model

Description

The 1370643-0630CDMCCDS-3R3MC is a molded fixed inductor from Sumida America Components Inc..

  • Series: 0630CDMC/DS
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C ~ 125°C
  • Inductance: 3.3μH
  • Current Rating: 8.4A
  • DC Resistance (DCR): 22mOhm Max
  • Shielding: Shielded
  • Package / Case: Nonstandard
  • Size / Dimension: 0.276" L x 0.260" W (7.00mm x 6.60mm)
  • Height - Seated (Max): 0.118" (3.00mm)
  • Product Status: Active
