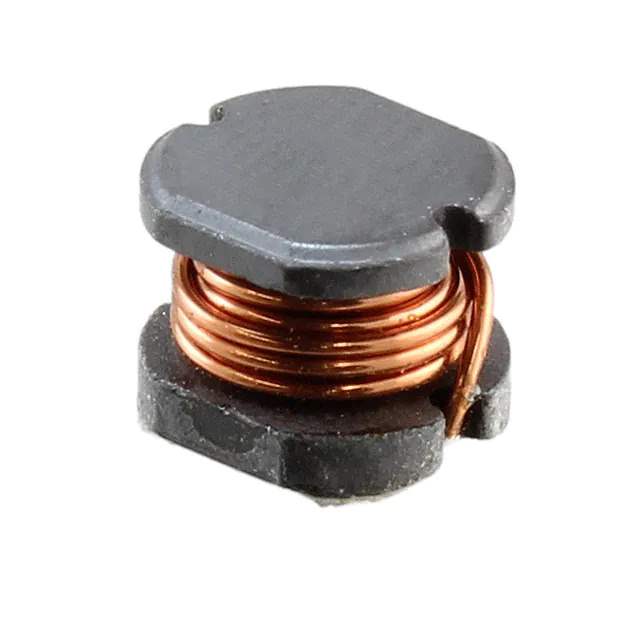

CD54NP-560KC

Name: CD54NP-560KC
Brand: Sumida America Components Inc.
SKU: 915133
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CD54NP-560KC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 56UH 680MA 420MOHM SMD / 56 μH Unshielded Inductor 680 mA 420mOhm Max Nonstandard
Datasheet	CD54NP-560KC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CD54
Package	Tape & Reel
Product Status	Active
Material - Core	Ferrite
Inductance	56 µH
Tolerance	±10%
Current Rating (Amps)	680 mA
Shielding	Unshielded
DC Resistance (DCR)	420mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	2.52 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.191" (4.85mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	915133-CD54NP-560KC
Ultra Librarian 3D Model	Ultra Librarian CD54NP-560KC CAD Model

Alternative Products

Description

The CD54NP-560KC is a fixed inductor manufactured by Sumida America Components Inc. It belongs to the CD54 series and features an unshielded design.

Series: CD54
Design: Unshielded
Size: 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height: 0.191" (4.85mm)
Inductance: 56 µH
Tolerance: ±10%
DCR: 420mOhm Max
Current Rating: 680 mA
Operating Temperature: -40°C to 100°C
Packaging: Tape and Reel
Package: Nonstandard
Status: Active
Manufacturer: Sumida America Components Inc.
