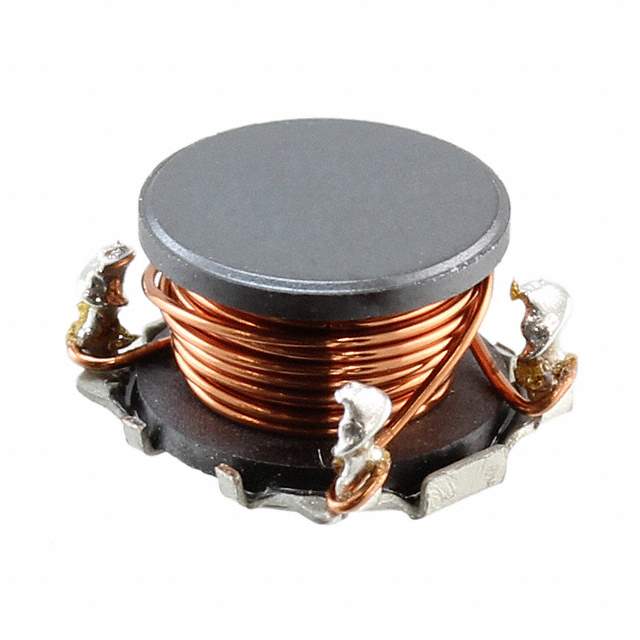

CDH74NP-560KC Real Image
Same model may have multiple batches, images only for reference.

CDH74NP-560KC

Part No CDH74NP-560KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 56UH 1.15A 260 MOHM
Datasheet
CDH74NP-560KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 56μH
Tolerance ±10%
Current Rating 1.15A
DC Resistance (DCR) 260 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.205" (5.20mm)
Win Source Part Number 202452-CDH74NP-560KC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDH74NP-560KC CAD Model

Description

CDH74NP-560KC Inductor

Engineered for modern electronics, the CDH74NP-560KC offers compactness and high inductance value. It is the go-to choice for engineers designing compact, efficient systems with premium power requirements.

  • Applications:
    • Battery-powered equipment
    • Signal processing
    • Smart home devices
  • Features and Benefits:
    • Energy-efficient design
    • High-quality core material for improved performance
    • Minimal inductance variance
    • Meets RoHS compliance standards
  • Additional Details:
    • Inductance: 560 μH
    • Operating temperature range: -40°C to +125°C
    • Package type: SMD
