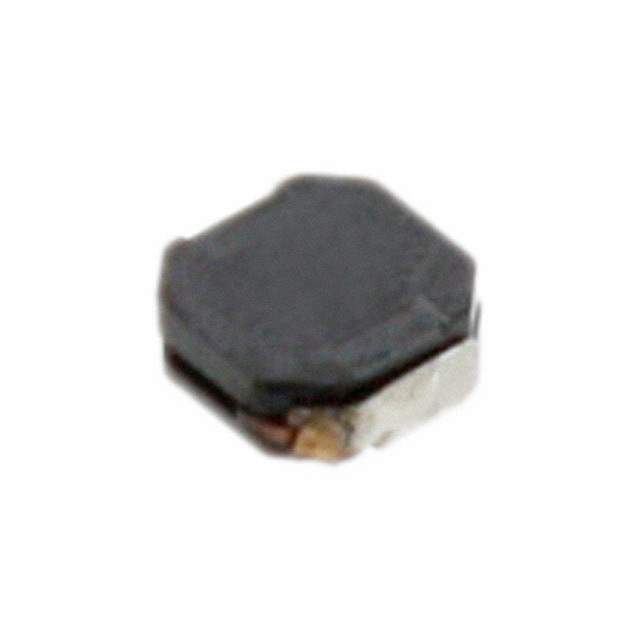

CDPH28D11FNP-2R2MC Real Image
Same model may have multiple batches, images only for reference.

CDPH28D11FNP-2R2MC

Part No CDPH28D11FNP-2R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.72A 96 MOHM
Datasheet
CDPH28D11FNP-2R2MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.72A
Current - Saturation 1.31A
DC Resistance (DCR) 96 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 050204-CDPH28D11FNP-2R2MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDPH28D11FNP-2R2MC CAD Model

Description

CDPH28D11FNP-2R2MC Description

The CDPH28D11FNP-2R2MC is a versatile inductor component celebrated for its optimal performance in supplying consistent energy to electronic circuits. It addresses the needs of modern devices emphasizing efficiency and compactness.

Features and Benefits:

  • Highly stable inductance over operating temperatures.
  • Compact design that suits densely populated PCB layouts.
  • Low energy dissipation improves overall device performance.

Applications and Projects:

  • Switching mode power supplies
  • DC-DC converters
  • High-efficiency power management solutions
Additional Details: The versatile nature of CDPH28D11FNP-2R2MC makes it a preferred choice for designers aiming to enhance power efficiency in modern electronic applications.
