Same model may have multiple batches, images only for reference.

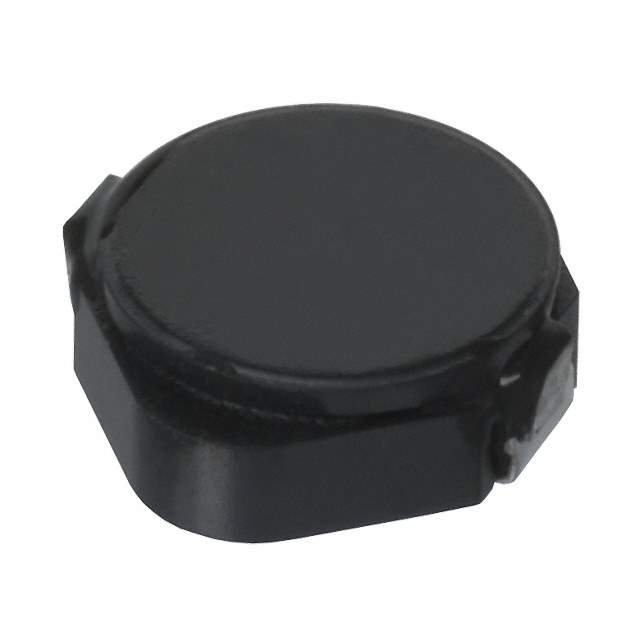

CDPH4D19FNP-4R7MC Real Image
Same model may have multiple batches, images only for reference.

CDPH4D19FNP-4R7MC

Part No CDPH4D19FNP-4R7MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description POWER INDUCTORS
Datasheet
CDPH4D19FNP-4R7MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDPH4D19F
Packaging Reel - TR
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 3.3A
Current - Saturation 1.15A
Shielding Shielded
DC Resistance (DCR) 38 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 1160799-CDPH4D19FNP-4R7MC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDPH4D19F
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDPH4D19FNP-4R7MC CAD Model

Description

The CDPH4D19FNP-4R7MC is an inductor manufactured by Sumida America Components Inc.

  • Series: CDPH4D19F
  • Current Rating: 3.3A
  • Shielded: Yes
  • Inductance: 4.7μH ±20%
  • Package: Non-Standard
  • Mounting: SMD
  • DC Resistance (DCR): 38 mOhm max
  • Current Saturation: 1.15A
  • Operating Temperature: -40°C to 105°C
  • Estimated EOL Date: 2024
