Same model may have multiple batches, images only for reference.

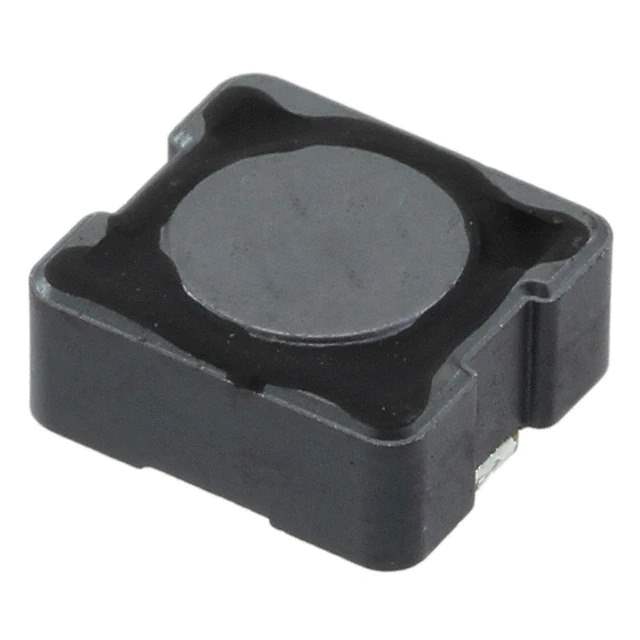

CDRH104NP-120MC Real Image
Same model may have multiple batches, images only for reference.

CDRH104NP-120MC

Part No CDRH104NP-120MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 2.25A 54 MOHM SMD / 12 μH Shielded Inductor 2.25 A 54mOhm Max Nonstandard
Datasheet
CDRH104NP-120MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH104
Package Tape & Reel
Product Status Active
Inductance 12 µH
Tolerance ±20%
Current Rating (Amps) 2.25 A
Shielding Shielded
DC Resistance (DCR) 54mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.386" L x 0.350" W (9.80mm x 8.90mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 866224-CDRH104NP-120MC
Ultra Librarian 3D Model Ultra Librarian CDRH104NP-120MC CAD Model

Description

The Sumida America Components Inc. CDRH104NP-120MC is a fixed inductor from Sumida America Components Inc.

  • Series: CDRH104
  • Mounting: Surface Mount
  • Shielded: Yes
  • Size: 0.386" L x 0.350" W (9.80mm x 8.90mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 12 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 54mOhm maximum
  • Operating Temperature Range: -40°C to 100°C
  • Current Rating: 2.25A
  • Packaging: Nonstandard tape & reel
  • Status: Active
  • ECCN: EAR99
