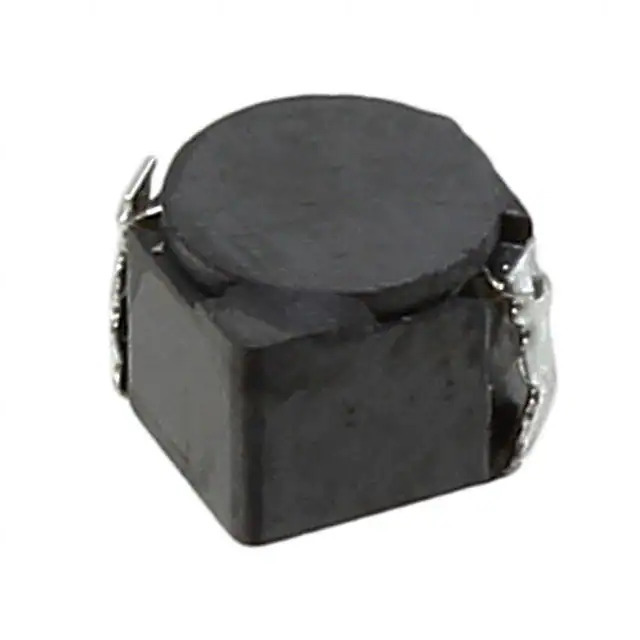

CDRH3D28NP-6R8NC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

CDRH3D28NP-6R8NC

Part No CDRH3D28NP-6R8NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.32A 119MOHM SM
Datasheet
CDRH3D28NP-6R8NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH3D28
Package Tape & Reel
Product Status Active
Type -
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 1.32 A
Current - Saturation (Isat) 1.24A
Shielding Shielded
DC Resistance (DCR) 119mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370522-CDRH3D28NP-6R8NC
Ultra Librarian 3D Model Ultra Librarian CDRH3D28NP-6R8NC CAD Model

Description

The 1370522-CDRH3D28NP-6R8NC is a fixed inductor from Sumida America Components Inc.

  • Series: CDRH3D28
  • Mounting: surface mount
  • Temperature Range: -40°C to 105°C
  • Inductance: 6.8μH
  • Current Rating: 1.32A
  • DC Resistance: 119mOhm
  • Shielded: yes
  • Package: nonstandard tape and reel
  • Size: 0.150" L x 0.150" W
  • Height: 0.118"
  • Status: active
