Same model may have multiple batches, images only for reference.

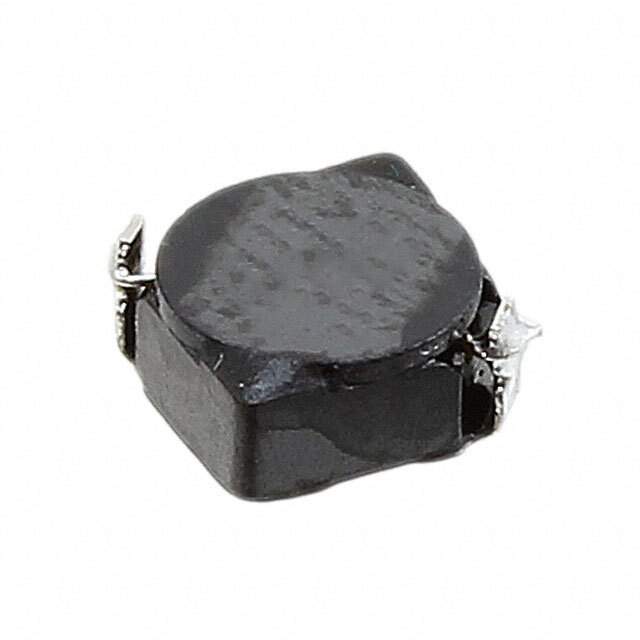

CDRH4D22HPNP-6R3NC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D22HPNP-6R3NC

Part No CDRH4D22HPNP-6R3NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Ferrite drum core construction.
Datasheet
CDRH4D22HPNP-6R3NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH4D22/HP
Packaging Reel - TR
Material - Core Ferrite
Inductance 6.3μH
Tolerance ±25%
Current Rating 1.4A
Current - Saturation 1.85A
Shielding Shielded
DC Resistance (DCR) 110 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Maximum) 0.094" (2.40mm)
Win Source Part Number 1160854-CDRH4D22HPNP-6R3NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Balance
Family Name CDRH4D22/HP
Introduction Date February 01, 2005
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH4D22HPNP-6R3NC CAD Model

Description

The Sumida America Components Inc. 1160854-CDRH4D22HPNP-6R3NC is a shielded inductor that is designed to provide an inductance of 6.3μH.

  • The device is packaged in a nonstandard package and is suitable for use in various applications, including inductors, coils, and chokes.
  • The device is categorized under inductors, coils, chokes and is ECCN EAR99 compliant.
  • Estimated EOL Date: 2024
