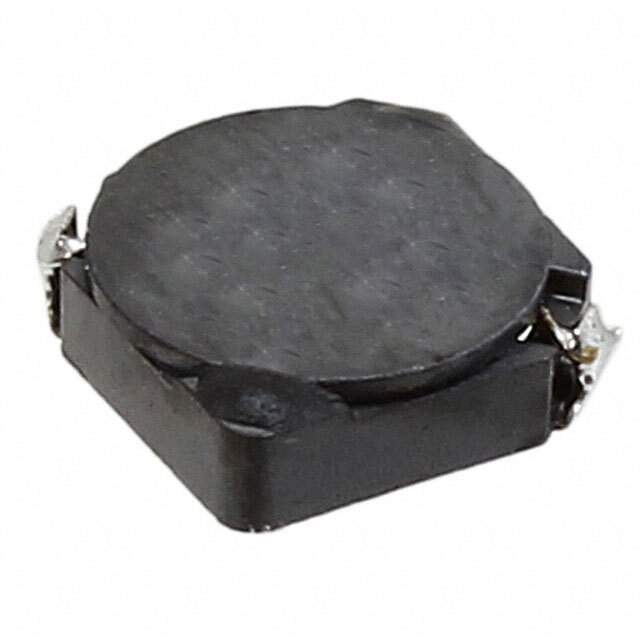

CDRH5D16NP-2R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D16NP-2R2NC

Part No CDRH5D16NP-2R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.9A 35.9 MOHM / SMD Power Inductor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sumida America Components Inc.
Packaging Reel
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±25%
Current Rating (Amps) 2.9A
Current - Saturation 3A
Shielding Shielded
DC Resistance (DCR) 35.9mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.220" L x 0.220" W (5.60mm x 5.60mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807292-CDRH5D16NP-2R2NC
Ultra Librarian 3D Model Ultra Librarian CDRH5D16NP-2R2NC CAD Model

Description

The Sumida America Components Inc. CDRH5D16NP-2R2NC shielded SMD inductor manufactured by Sumida America Components Inc. is designed for a wide range of electronic applications.

  • Inductance: 2.2μH
  • Tolerance: ±25%
  • Current Rating: 2.9A
  • Temperature Range: -40°C to 105°C
  • Core Material: Ferrite
  • Packaging: Reel
  • DC Resistance: 35.9mOhm (Max)
  • Dimensions: 0.220" L x 0.220" W (5.60mm x 5.60mm)
  • Height: 0.071" (1.80mm)
  • Series: CDRH5D
