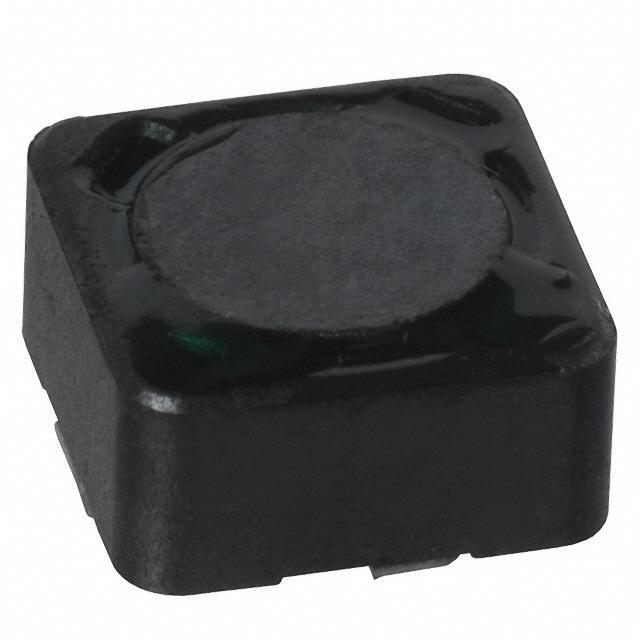

CDRH74NP-681MC-B Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

CDRH74NP-681MC-B

Part No CDRH74NP-681MC-B
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 680UH 220MA 4.63 OHM / Inductor Power Shielded Drum Core 680uH 20% 1KHz Ferrite 0.22A 4.63Ohm DCR T/R
Datasheet
CDRH74NP-681MC-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH74
Packaging Reel package
Material - Core Ferrite
Inductance 680μH
Tolerance ±20%
Current Rating 220mA
Shielding Shielded
DC Resistance (DCR) 4.63 Ohm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 771472-CDRH74NP-681MC-B
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH74
Introduction Date July 29, 2002
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CDRH74NP-681MC-B CAD Model

Description

The Sumida America Components Inc. CDRH74NP-681MC-B is a high-performance power inductor.

  • Current Rating: 220mA
  • Inductance: 680μH
  • Shielding: Yes
  • Tolerance: ±20%
  • Supply and Demand: limited
