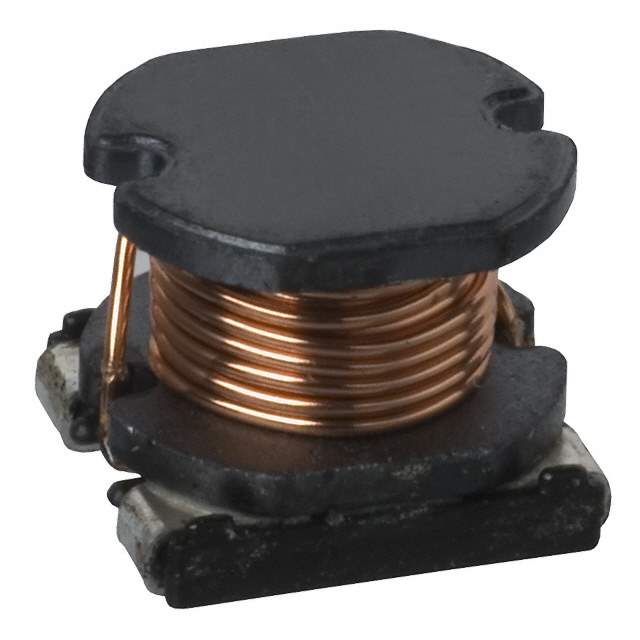

CR54NP-221KC Real Image
Same model may have multiple batches, images only for reference.

CR54NP-221KC

Part No CR54NP-221KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description POWER INDUCTORS
Datasheet
CR54NP-221KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CR54
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±10%
Current Rating 350mA
Shielding Unshielded
DC Resistance (DCR) 1.57 Ohm Max
Frequency - Self Resonant 5.73MHz
Operating Temperature Range -40°C ~ 100°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Size 0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Maximum) 0.191" (4.85mm)
Win Source Part Number 1163027-CR54NP-221KC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Balance
Family Name CR54
Introduction Date July 29, 2002
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CR54NP-221KC CAD Model

Description

The Sumida America Components Inc. CR54NP-221KC is a wirewound inductor that provides an inductance of 220μH and a current rating of 350mA.

  • Inductance: 220μH
  • Current Rating: 350mA
  • DC Resistance (DCR): 1.57 Ohm max
  • Tolerance: ±10%
  • Mounting Type: SMD
  • Height: 0.191" (4.85mm) when seated
  • Operating Temperature: -40°C to 100°C
  • Application: Inductors, Coils, Chokes
  • Packaging: Reel - TR
  • Popularity: Medium
  • Series: CR54
  • Introduction Date: July 29, 2002
  • Estimated EOL Date: 2024
  • ECCN: EAR99
