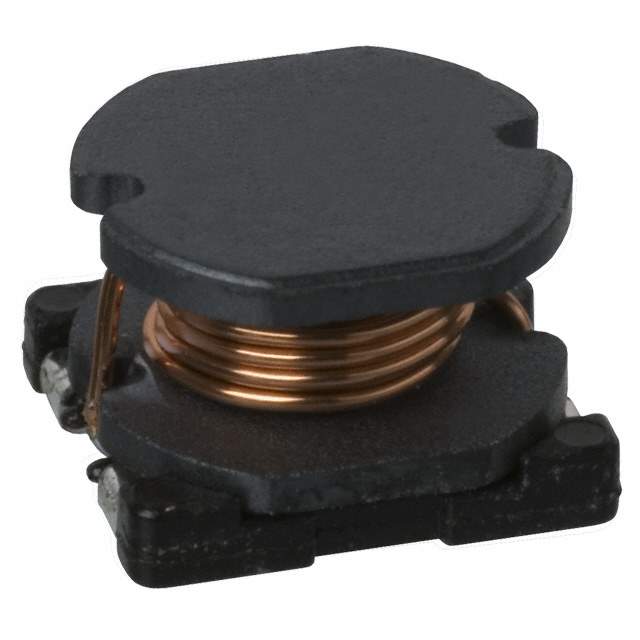

Same model may have multiple batches, images only for reference.

CR75NP-100KC

Name: CR75NP-100KC
Brand: Sumida America Components Inc.
SKU: 96135
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CR75NP-100KC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 10UH 2.3A 70 MOHM SMD
Datasheet	CR75NP-100KC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Sumida America Components Inc.
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10μH
Tolerance	±10%
Current Rating	2.3A
DC Resistance (DCR)	70 mOhm Max
Frequency - Self Resonant	28MHz
Temperature Range - Operating	-40°C to 100°C
Frequency - Test	2.52MHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.217" (5.50mm)
Win Source Part Number	013275-CR75NP-100KC
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian CR75NP-100KC CAD Model

Alternative Products

Description

CR75NP-100KC Inductor

The CR75NP-100KC is tailored for applications needing precise energy control. Its high saturation point and minimal energy loss make it advantageous for advanced power applications.

Features:
- High saturation point.
- Advanced energy efficiency.
- Compact design maximizing circuit space.
Applications:
- Advanced power converters
- Renewable energy systems
- High-efficiency power supplies
- Battery management systems

Benefits: The CR75NP-100KC provides exceptional performance in controlling energy flow, enhancing the efficiency and longevity of power systems.
