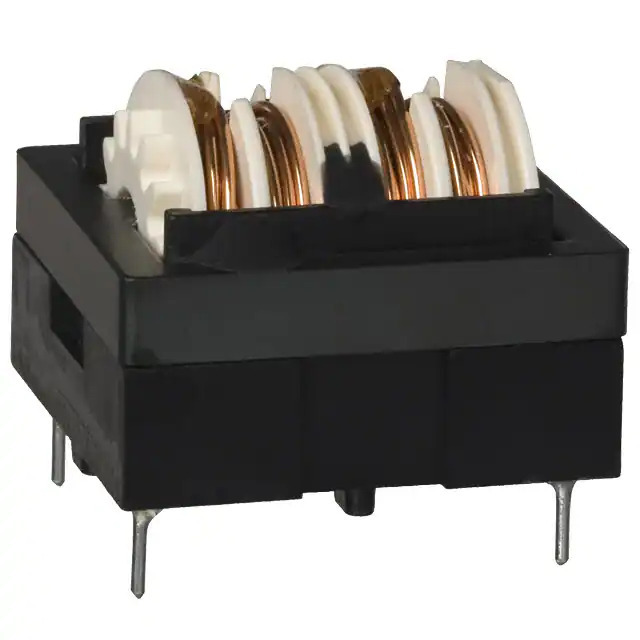

LF2823NP-393 Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

LF2823NP-393

Part No LF2823NP-393
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 39MH 700MA 2LN TH
Datasheet
LF2823NP-393 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Sumida America Components Inc.
Series LF
Package Bulk
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 39 mH @ 1 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 1.43Ohm
Voltage Rating - DC -
Voltage Rating - AC -
Ratings -
Approval Agency -
Features -
Mounting Type Through Hole
Size / Dimension 1.122" L x 1.122" W (28.50mm x 28.50mm)
Height (Max) 0.945" (24.00mm)
Package / Case Vertical, 4 PC Pin
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369392-LF2823NP-393
Ultra Librarian 3D Model Ultra Librarian LF2823NP-393 CAD Model

Description

The LF2823NP-393 is a common mode choke from Sumida America Components Inc.

  • Manufacturer: Sumida America Components Inc.
  • Series: LF
  • Product: LF2823NP-393
  • Package Size: 1.122" L x 1.122" W (28.50mm x 28.50mm)
  • Height: 0.945" (24.00mm)
  • Package/Case: Vertical, 4 PC Pin
  • Mounting Type: Through Hole
  • Current: 700mA
  • DC Resistance (DCR): 1.43 Ohm
  • Operating Temperature: Not Specified
  • Product Status: Active
  • Application: Power Line Filtering
