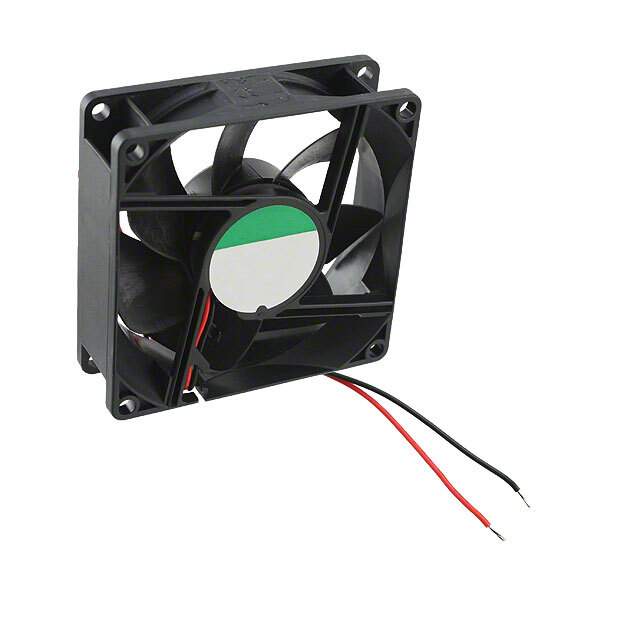

EE80251S1-000U-A99 Real Image
Same model may have multiple batches, images only for reference.

EE80251S1-000U-A99

Part No EE80251S1-000U-A99
Manufacturer Sunon Fans
Catalog DC Fans
Description FAN AXIAL 80X25MM 12VDC WIRE / DC Fan Sleeve Bearing 12V 0.145A 1.7W 3200RPM 41CFM 33dB Flange Mount
Datasheet
EE80251S1-000U-A99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sunon Fans
Series DR MagLev
Voltage Rating DC 12VDC
Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 41.0 CFM (1.15m3/min)
Static Pressure 0.180 in H2O (44.8 Pa)
Bearing Type Sleeve
Fan Type Tubeaxial
Features Auto Restart
Noise 33 dB(A)
Power (Watts) 1.70W
RPM 3200 RPM
Termination 2 Wire Leads
Operating Temperature Range 14 ~ 158°F (-10 ~ 70°C)
Approvals CE, CUR, TUV, UL
Weight 0.165 lb (74.84g)
Current Rating 0.145A
Voltage Range 4.5 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 50000 Hrs @ 40°C
Win Source Part Number 773669-EE80251S1-000U-A99
Popularity Medium
Supply and Demand Status Limited
Quantity per package 30
Family Name EE
Introduction Date May 26, 2013
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EE80251S1-000U-A99 CAD Model

Description

This Sunon Fans DR MagLev fan is a tubeaxial fan with a Win Source Part Number of 773669-EE80251S1-000U-A99.

  • Width: 25.00mm
  • Dimension: 80mm L x 80mm H
  • Voltage Range: 4.5 ~ 13.8VDC
  • Current Rating: 0.145A
  • Approvals: CE, CUR, TUV, UL
  • Features: Auto restart
  • Power: 1.70W
  • Lifetime: 50000 Hrs @ 40°C
  • Weight: 0.165 lb (74.84g)
  • Air Flow: 41.0 CFM (1.15m3/min)
  • Static Pressure: 0.180 in H2O (44.8 Pa)
  • Bearing Type: Sleeve
  • Noise Level: 33 dB(A)
  • RPM: 3200
  • Material - Frame and Blade: Polybutylene Terephthalate (PBT)
  • Category: Fans, Thermal Management
