Same model may have multiple batches, images only for reference.

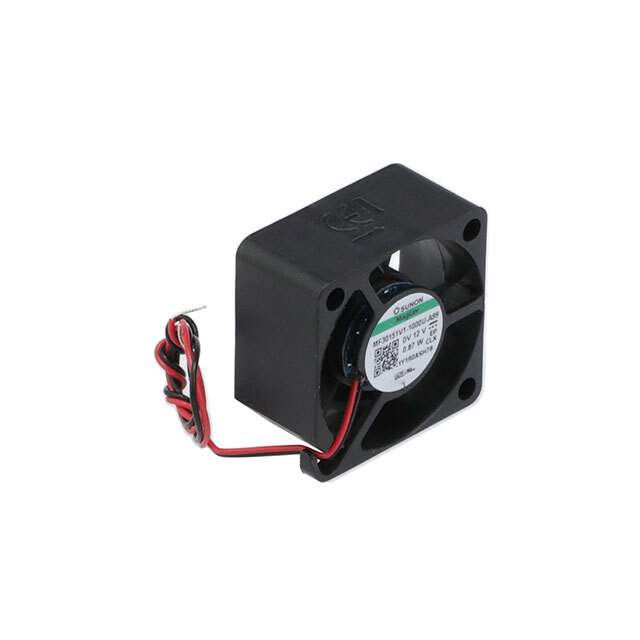

MF30151V1-1000U-A99 Real Image
Same model may have multiple batches, images only for reference.

MF30151V1-1000U-A99

Part No MF30151V1-1000U-A99
Manufacturer Sunon Fans
Catalog DC Fans
Description DC FAN 30X15 12VDC VAPO  /  Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Vapo-Bearing™ 6.0 CFM (0.168m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sunon Fans
Series MagLev® MF
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 30mm L x 30mm H
Width 15.00mm
Air Flow 6.0 CFM (0.168m³/min)
Static Pressure 0.170 in H2O (42.3 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Features Auto Restart
Noise 27.0dB(A)
Power (Watts) 780 mW
RPM 9500 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency cURus, TUV
Weight 0.022 lb (9.98 g)
Current Rating (Amps) 0.065A
Voltage Range 6 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number MF30151V1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names MF30151V1-1000U-A99-ND,259-2073
Standard Package 1
Win Source Part Number 1231731-MF30151V1-1000U-A99
Ultra Librarian 3D Model Ultra Librarian MF30151V1-1000U-A99 CAD Model

Description

The MagLev MF is a DC brushless fan from Sunon Fans.

  • Win Source Part Number: 1231731-MF30151V1-1000U-A99
  • Voltage Rating: 12VDC
  • Power Rating: 780mW
  • Lifetime: 70000 hours @ 40°C
  • Fan Type: tubeaxial
  • Bearing Type: Vapo-Bearing™
  • Noise Level: 27.0dB(A)
  • Static Pressure: 0.170 in H2O (42.3 Pa)
  • Air Flow: 6.0 CFM (0.168m³/min)
  • Packaging: bulk
  • Standard Quantity: 1 piece per package
  • ECCN Rating: EAR99
  • HTSUS Code: 8414.59.6590
