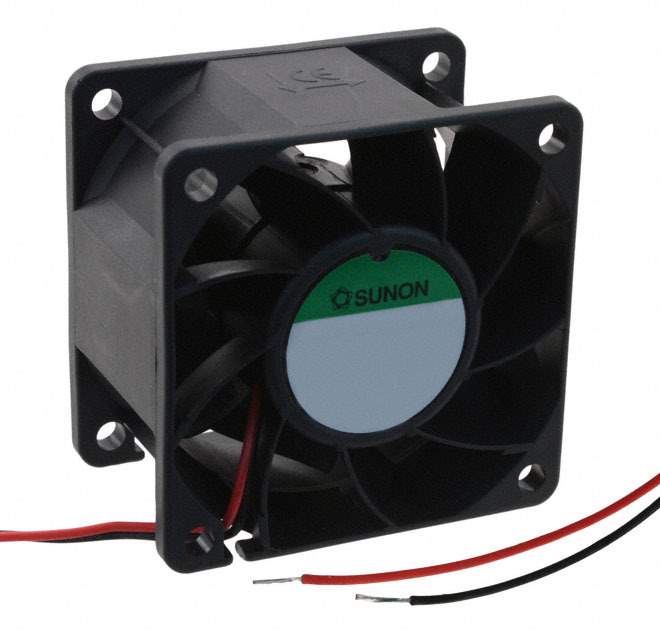

PMD2406PMB1-A.(2).GN Real Image
Same model may have multiple batches, images only for reference.

PMD2406PMB1-A.(2).GN

Part No PMD2406PMB1-A.(2).GN
Manufacturer Sunon Fans
Catalog DC Fans
Description FAN AXIAL 60X38MM 24VDC WIRE
Datasheet
PMD2406PMB1-A.(2).GN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sunon Fans
Status Active
Voltage Rating 24VDC
Width 38mm
Air Flow 56.5 CFM (1.60m3/min)
Static Pressure 0.920 in H2O (229.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 56 dB(A)
Power (Watts) 10.3W
RPM 8000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 to 158°F (-10 to 70°C)
Approvals CE, CUR, TUV, UL
Weight 0.198 lb (89.81g)
Current Rating 0.430A
Voltage Range 10 to 27.6VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Win Source Part Number 116080-PMD2406PMB1-A.(2).GN
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMD2406PMB1-A.(2).GN CAD Model

Description

The Sunon Fans 116080-PMD2406PMB1-A.(2).GN is a tubeaxial fan that operates on 24VDC voltage rating and has a current rating of 0.430A.

  • Voltage Rating: 24VDC
  • Current Rating: 0.430A
  • Approvals: CE, CUR, TUV, and UL
  • Power Rating: 10.3W
  • Weight: 0.198 lb (89.81g)
  • Voltage Range: 10 to 27.6VDC
  • Width: 38mm
  • Air Flow: 56.5 CFM (1.60m3/min)
  • Static Pressure: 0.920 in H2O (229.2 Pa)
  • Bearing Type: Ball
  • Noise Level: 56 dB(A)
  • RPM: 8000 RPM
  • Frame and Blade Material: Polybutylene Terephthalate (PBT)
  • Temperature Range: 14 to 158°F (-10 to 70°C)
