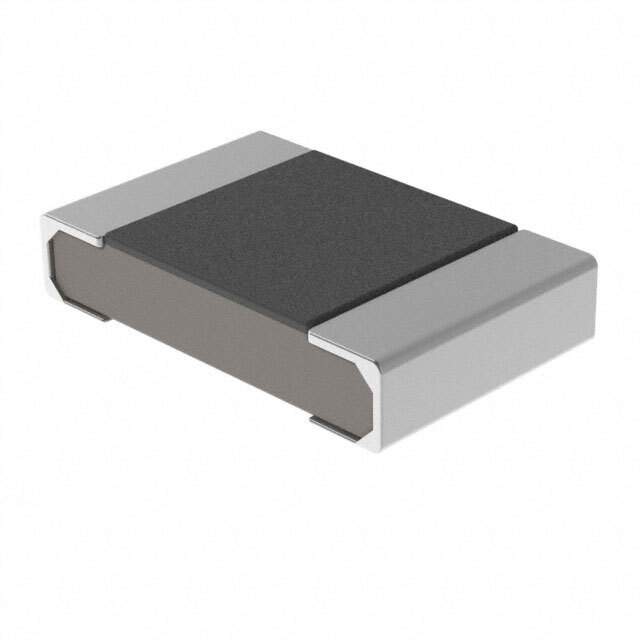

The RG2012P-474-D-T5 is a precision thin film chip resistor manufactured by Susumu. This resistor is designed for applications requiring high accuracy, stability, and low noise. It utilizes thin film technology to achieve tight tolerances and minimal drift over time and temperature.

Applications

• Precision amplifiers
• Instrumentation and measurement circuits
• Medical devices
• High-accuracy voltage dividers
• Sensor circuits

Features

• Thin film technology
• High precision
• Low temperature coefficient of resistance (TCR)
• Low noise
• Small 0805 package size

Benefits

• Improved accuracy and stability in critical circuits
• Reduced measurement errors
• Enhanced performance in demanding applications
• Compact design for space-constrained environments
• Long-term reliability

Specifications

The RG2012P-474-D-T5 has a resistance value of 470 kΩ (470,000 ohms) with a tolerance of ±0.5%. Its temperature coefficient of resistance (TCR) is extremely low, typically ±25 ppm/°C or better. The power rating is typically 0.1W. It is packaged in a small 0805 surface-mount package. The operating temperature range is typically -55°C to +155°C. This resistor's thin film construction ensures exceptional stability and minimal drift, making it ideal for applications where precision is paramount.

This thin film chip resistor provides a high-performance solution for applications requiring exceptional accuracy and stability. Its tight tolerances, low TCR, and low noise characteristics make it a preferred choice for precision instrumentation, medical devices, and other demanding circuits.
