Same model may have multiple batches, images only for reference.

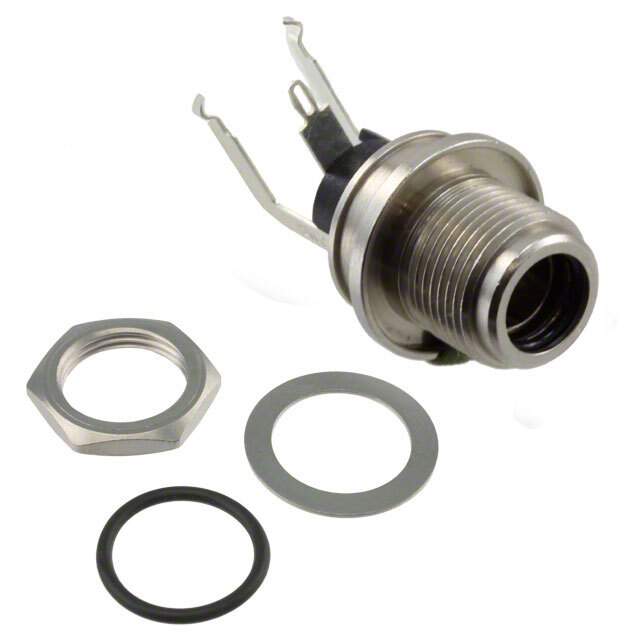

L712RAS Real Image
Same model may have multiple batches, images only for reference.

L712RAS

Part No L712RAS
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Description IP68/ NEMA 250 (6P) Sealed Power Plug and Jack
Datasheet
L712RAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Voltage Rating DC 30VDC
Current Rating 5A
Contact Material - Plating Silver
Body Material Copper Alloy
Includes 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
Housing Material Thermoplastic
Contact Material Copper Alloy
Thread Size 7/16"-32
Body Color Silver, Black
Ingress Protection IP68
Manufacturer Homepage switchcraft.com
Win Source Part Number 724442-L712RAS
Popularity Medium
Supply and Demand Status Limited
Family Name L712RAS
Introduction Date March 15, 2010
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian L712RAS CAD Model

Description

The L712RAS is a Switchcraft Inc. electronic component.

  • Supply and Demand Status: Limited
  • Type: Male jack connector
  • Conductors: Two
  • Contacts: Three
  • Current Rating: 5A
  • Ingress Protection: IP68
  • Mounting: Panel mount, through hole, right-angle
  • Includes: Mounting hardware, thread lock
  • RoHS Compliant: Yes
